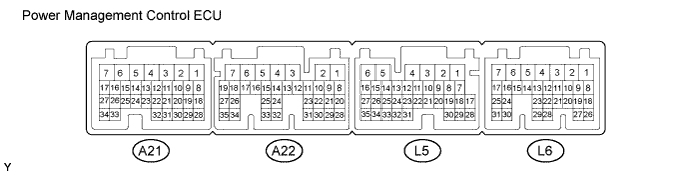

HYBRID CONTROL SYSTEM > TERMINALS OF ECU

for Preparation Click here

HINT:

Oscilloscope waveform samples are provided here for informational purposes. Noise and fluttering waveforms have been omitted.

1. Waveform 1 (DC/DC operation monitor / voltage change signal)


   Item	Content
   Terminal	A21-11 (VLO) - L5-6 (E1)
   Equipment Setting	5 V/DIV., 50 ms./DIV.
   Condition	Power switch on (IG)

   HINT:

   The cycle will vary depending on the specified voltage of the hybrid vehicle converter.





2. Waveform 2 (inverter water pump assembly signal)

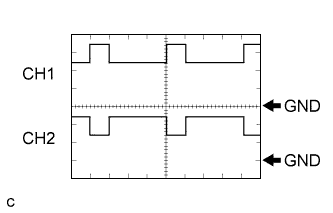

   Item	Content

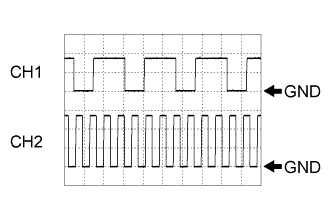

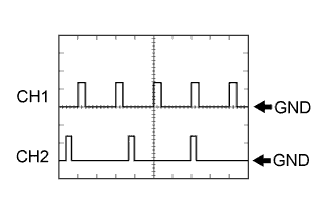

   Terminal	CH1: A21-13 (IWP) - L5-6 (E1) CH2: A21-14 (NIWP) - L5-6 (E1)
   Equipment Setting	5 V/DIV., 50 ms./DIV.
   Condition	Power switch on (READY)

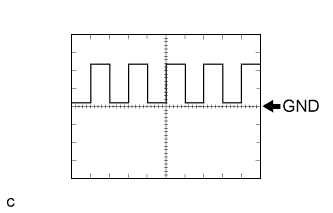

3. Waveform 3 (Camshaft position sensor signal)


   Item	Content

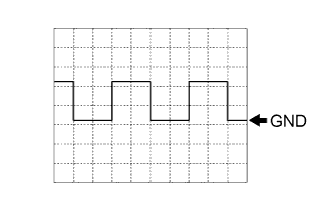

   Terminal	A21-16 (GI) - L5-6 (E1)
   Equipment Setting	5 V/DIV., 20 ms./DIV.
   Condition	Power switch on (READY) with engine running

   HINT:

   The pulse cycle becomes shorter as the engine speed increases.

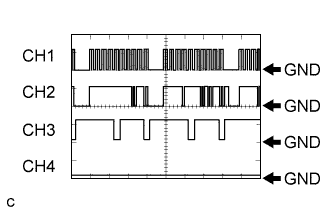

4. Waveform 4 (A/C communication signal)


   Item	Content

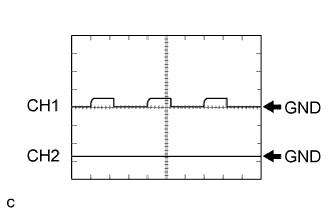

   Terminal	CH1: A21-19 (CLK) - L5-6 (E1) CH2: A21-31 (ITE) - L5-6 (E1) CH3: A21-30 (ETI) - L5-6 (E1) CH4: A21-20 (STB) - L5-6 (E1)
   Equipment Setting	10 V/DIV., 100 ms./DIV.
   Condition	Power switch on (READY), air conditioning system stopped

   HINT:

   The waveform will vary depending on the content of the digital communication (digital signal).

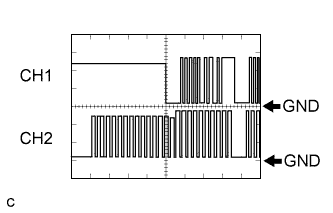

5. Waveform 5 (HV battery blower fan)


   Item	Content

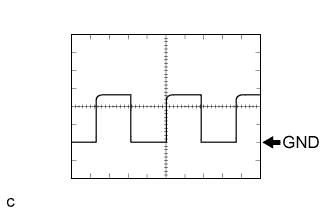

   Terminal	CH1: A21-29 (SIO) - L5-6 (E1) CH2: A21-4 (FCTL) - L5-5 (E01)
   Equipment Setting	10 V/DIV., 1 ms./DIV.
   Condition	Power switch on (IG), during Active Test

   HINT:

   The waveform will vary depending on the content of the digital communication (digital signal).





6. Waveform 6 (MG communication clock signal)


   Item	Content

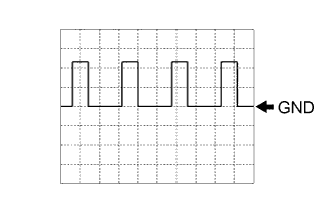

   Terminal	CH1: A22-21 (CLK+) - L5-6 (E1) CH2: A22-20 (CLK-) - L5-6 (E1)
   Equipment Setting	1 V/DIV., 1 μs./DIV.
   Condition	Power switch on (READY)





7. Waveform 7 (P position switch signal)


   Item	Content
   Terminal	CH1: A22-22 (PCON) - L5-6 (E1) CH2: A22-28 (PPOS) - L5-6 (E1)
   Equipment Setting	10 V/DIV., 10 ms./DIV.
   Condition	Power switch on (IG), park(P) selected

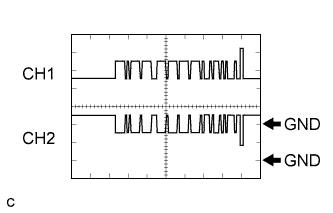

8. Waveform 8 (communication signal from power management control ECU (HV CPU) to MG ECU)


   Item	Content
   Terminal	CH1: A22-24 (HTM+) - L5-6 (E1) CH2: A22-25 (HTM-) - L5-6 (E1)
   Equipment Setting	1 V/DIV., 200 μs./DIV.
   Condition	Power switch on (IG)

   HINT:

   The waveform will vary depending on the content of the digital communication (digital signal).





9. Waveform 9 (communication signal from MG ECU to power management control ECU (HV CPU))


   Item	Content
   Terminal	CH1: A22-30 (MTH+) - L5-6 (E1) CH2: A22-29 (MTH-) - L5-6 (E1)
   Equipment Setting	1 V/DIV., 200 μs./DIV.
   Condition	Power switch on (IG)

   HINT:

   The waveform will vary depending on the content of the digital communication (digital signal).





10. Waveform 10 (MG ECU communication request signal)


    Item	Content
    Terminal	CH1: A22-33 (REQ+) - L5-6 (E1) CH2: A22-32 (REQ-) - L5-6 (E1)
    Equipment Setting	1 V/DIV., 1 ms./DIV.
    Condition	Power switch on (IG)





11. Waveform 11 (system main relay)


    Item	Content

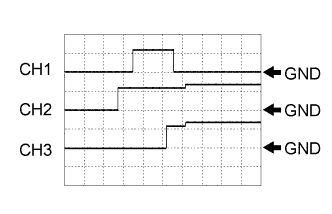

    Terminal	CH1: L5-3 (SMRP) - L5-5 (E01) CH2: L5-4 (SMRB) - L5-5 (E01) CH3: L5-2 (SMRG) - L5-5 (E01)
    Equipment Setting	10 V/DIV., 200 ms./DIV.
    Condition	Power switch on (IG) → Power switch on (READY)





12. Waveform 12 (vehicle speed signal)


    Item	Content
    Terminal	L5-14 (SPDI) - L5-6 (E1)
    Equipment Setting	5 V/DIV., 20 ms./DIV.
    Condition	Approximately 20 km/h (12 mph)

    HINT:

    The higher the vehicle speed, the shorter the cycle.





13. Waveform 13 (airbag activation)


    Item	Content
    Terminal	L5-29 (ABFS) - L5-6 (E1)
    Equipment Setting	5 V/DIV., 500 ms./DIV.
    Condition	Power switch on (READY) (2 seconds after power switch on (ACC))

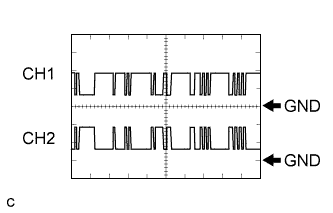

14. Waveform 14 (communication signal from battery smart unit to power management control ECU (HV CPU))


    Item	Content
    Terminal	CH1: L5-32 (BTH+) - L5-6 (E1) CH2: L5-33 (BTH-) - L5-6 (E1)
    Equipment Setting	2 V/DIV., 500 μs./DIV.
    Condition	Power switch on (IG)

    HINT:

    The waveform will vary depending on the content of the digital communication (digital signal).





15. Waveform 15 (CAN communication signal)


    Item	Content
    Terminal	CH1: L5-34 (CA2H) - L5-6 (E1) CH2: L5-35 (CA2L) - L5-6 (E1)
    Equipment Setting	1 V/DIV., 50 μs./DIV.
    Condition	Power switch on (IG)

    HINT:

    The waveform will vary depending on the content of the digital communication (digital signal).





16. Waveform 16 (immobiliser communication)


    Item	Content
    Terminal	CH1: L6-20 (IMO) - L5-6 (E1) CH2: L6-21 (IMI) - L5-6 (E1)
    Equipment Setting	5 V/DIV., 200 ms./DIV.
    Condition	Immobiliser communicating





17. Waveform 17 (CAN communication signal)


    Item	Content
    Terminal	CH1: L6-25 (CA1H) - L5-6 (E1) CH2: L6-24 (CA1L) - L5-6 (E1)
    Equipment Setting	1 V/DIV., 50 μs./DIV.
    Condition	Power switch on (IG)

    HINT:

    The waveform will vary depending on the content of the digital communication (digital signal).





18. Waveform 18 (CAN communication signal)


    Item	Content
    Terminal	CH1: L6-31 (CA3P) - L5-6 (E1) CH2: L6-30 (CA3N) - L5-6 (E1)
    Equipment Setting	1 V/DIV., 50 μs./DIV.
    Condition	Power switch on (IG)

    HINT:

    The waveform will vary depending on the content of the digital communication (digital signal).

HINT:

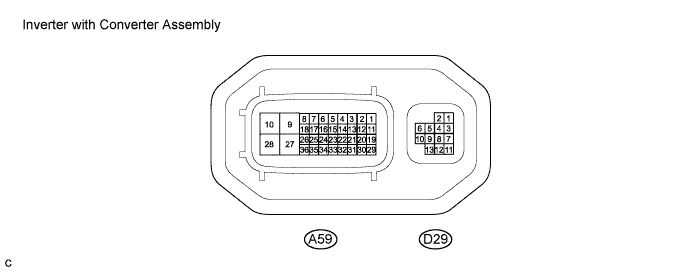

Since the inverter with converter assembly uses waterproof connectors, the voltage and waveform cannot be inspected directly. Standard voltage readings and waveforms are indicated for reference only.

NOTICE:

Do not measure the voltage or waveform directly at the sealed side of the inverter with converter assembly connector. Doing so may damage the connector because the connector is waterproof.

HINT:

Oscilloscope waveform samples are provided here for informational purposes. Noise and fluttering waveforms have been omitted.

1. Waveform 1 (DC/DC operation monitor / voltage change signal)


   Item	Content
   Terminal	A59-3 (VLO) - A59-28 (GND1)
   Equipment Setting	5 V/DIV., 50 ms./DIV.
   Condition	Power switch on (IG)

   HINT:

   The cycle will vary depending on the specified voltage of the hybrid vehicle converter.

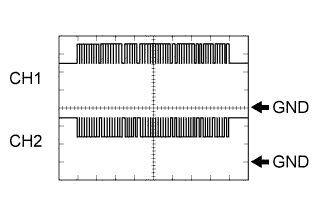

2. Waveform 2 (communication clock signal)


   Item	Content
   Terminal	CH1: A59-5 (CLK+) - A59-28 (GND1) CH2: A59-15 (CLK-) - A59-28 (GND1)
   Equipment Setting	1 V/DIV., 1 μs./DIV.
   Condition	Power switch on (READY)





3. Waveform 3 (communication request signal)


   Item	Content
   Terminal	CH1: A59-6 (REQ+) - A59-28 (GND1) CH2: A59-16 (REQ-) - A59-28 (GND1)
   Equipment Setting	1 V/DIV., 1 ms./DIV.
   Condition	Power switch on (READY)





4. Waveform 4 (communication signal from MG ECU to power management control ECU (HV CPU))


   Item	Content
   Terminal	CH1: A59-7 (MTH+) - A59-28 (GND1) CH2: A59-17 (MTH-) - A59-28 (GND1)
   Equipment Setting	1 V/DIV., 200 μs./DIV.
   Condition	Power switch on (READY)

   HINT:

   The waveform will vary depending on the content of the digital communication (digital signal).





5. Waveform 5 (communication signal from power management control ECU (HV CPU) to MG ECU)


   Item	Content
   Terminal	CH1: A59-8 (HTM+) - A59-28 (GND1) CH2: A59-18 (HTM-) - A59-28 (GND1)
   Equipment Setting	1 V/DIV., 200 μs./DIV.
   Condition	Power switch on (READY)

   HINT:

   The waveform will vary depending on the content of the digital communication (digital signal).





6. Waveform 6 (GI signal)


   Item	Content
   Terminal	A59-29 (GI) - A59-28 (GND1)
   Equipment Setting	5 V/DIV., 20 ms./DIV.
   Condition	Power switch on (READY) with engine running

   HINT:

   The pulse cycle becomes shorter as the engine speed increases.

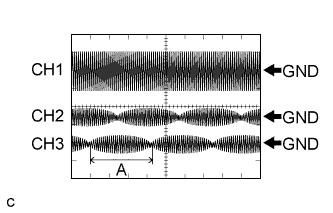

7. Waveform 7 (motor resolver signal)


   Item	Content
   Terminal	CH1: D29-1 (MRF) - D29-2 (MRFG) CH2: D29-3 (MSN) - D29-4 (MSNG) CH3: D29-6 (MCS) - D29-5 (MCSG)
   Equipment Setting	CH1: 10 V/DIV., 1 ms./DIV. CH2, 3: 5 V/DIV., 1 ms./DIV.
   Condition	Resolver running

   HINT:

   Pulse cycle A becomes shorter as the rotor speed increases.





8. Waveform 8 (generator resolver signal)


   Item	Content
   Terminal	CH1: D29-11 (GRF) - D29-12 (GRFG) CH2: D29-7 (GSN) - D29-8 (GSNG) CH3: D29-10 (GCS) - D29-9 (GCSG)
   Equipment Setting	CH1: 10 V/DIV., 1 ms./DIV. CH2, 3: 5 V/DIV., 1 ms./DIV.
   Condition	Resolver running

   HINT:

   Pulse cycle A becomes shorter as the rotor speed increases.
