HARD DISK DRIVE > REMOVAL

for Preparation Click here



1. PRECAUTION

NOTICE:
  1. After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Click here).
  2. A Hard Disk Drive (HDD) is built into the navigation receiver assembly to store map and other data, and is used for the navigation system. Therefore, care must be taken for the following points when handling the navigation receiver assembly.
  3. When removing the hard disk drive, eliminate static electricity by touching the vehicle body to prevent components from being damaged.



2. REMOVE REAR NO. 2 FLOOR BOARD


    B227787E01

  1. Disengage the 2 guides <A> as shown in the illustration.

  1. Disengage the 3 guides <B> and remove the rear No. 2 floor board.



3. REMOVE REAR DECK FLOOR BOX

  1. Remove the rear deck floor box.



4. REMOVE REAR NO. 3 FLOOR BOARD


    B227791

  1. Disengage the 2 guides and remove the rear No. 3 floor board.



5. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



6. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY


    B223452E01

  1. Using a moulding remover, slightly lift the panel at the position shown in the illustration.
    Text in Illustration
    *a
    		Lift slightly

  1. Pull the integration control and panel assembly in the direction indicated by the arrow to disengage the 6 claws.

  1. Disconnect each connector and remove the integration control and panel assembly.



7. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY


    B223454

  1. Pull the lower center instrument cluster finish panel sub-assembly in the direction indicated by the arrow to disengage the 2 claws and 2 clips.



    B223455

  1. Pull the lower center instrument cluster finish panel sub-assembly in the direction indicated by the arrow to disengage the 5 claws and remove the lower center instrument cluster finish panel sub-assembly.



8. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH

  1. Disengage the 14 claws.



  1. Disconnect the connector and remove the instrument cluster finish panel garnish.


    B223458



9. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY


    B223459

  1. Disengage the 3 claws.

  1. Disconnect the connector and remove the upper instrument panel finish panel sub-assembly.



10. REMOVE NAVIGATION RECEIVER WITH BRACKET


    E188505

  1. Remove the 4 bolts.



    E188507

  1. Disengage the 4 claws and remove the navigation receiver with bracket as shown in the illustration.

  1. Disconnect each connector.



11. REMOVE NO. 2 RADIO BRACKET

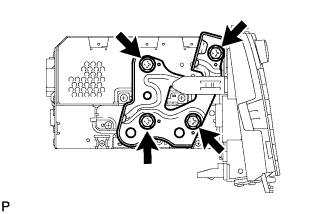

    E237122

  1. Remove the 4 screws and No. 2 radio bracket.



12. REMOVE HARD DISK DRIVE

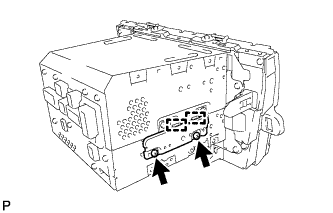

    E237127

  1. Remove the 2 screws.

  1. Disengage the 2 guides to remove the cover.

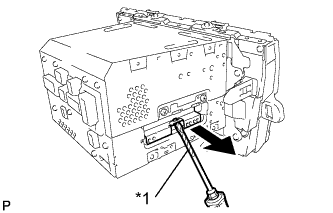

    E237128E01

  1. Using a screwdriver with its tip taped with protective tape, slide the hard disk drive in the direction shown by the arrow to remove it.
    Text in Illustration
    *1
    		Protective Tape
