HARD DISK DRIVE > INSTALLATION

for Preparation Click here



1. PRECAUTION

NOTICE:
When installing the hard disk drive, eliminate static electricity by touching the vehicle body to prevent components from being damaged.



2. INSTALL HARD DISK DRIVE

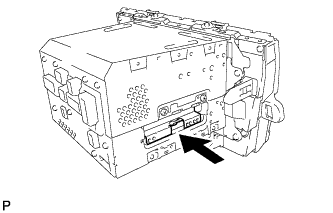

    E237129

  1. Insert the hard disk drive in the direction shown by the arrow in the illustration to install it.

  1. Engage the 2 guides to temporarily install the cover.

  1. Install the cover with the 2 screws.



3. INSTALL NO. 2 RADIO BRACKET

  1. Install the No. 2 radio bracket with the 4 screws.



4. INSTALL NAVIGATION RECEIVER WITH BRACKET


    E188508

  1. Engage the 4 claws and temporarily install the navigation receiver with bracket as shown in the illustration.

  1. Install the navigation receiver with bracket with the 4 bolts.



5. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY


    B223459

  1. Connect the connector.

  1. Engage the 3 claws to install the upper instrument panel finish panel sub-assembly.



6. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH

  1. Connect the connector.

  1. Engage the 14 claws to install the instrument cluster finish panel garnish.



7. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY


    B223456

  1. Engage the 7 claws and 2 clips to install the lower center instrument cluster finish panel sub-assembly.



8. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY


    B223453

  1. Connect each connector.

  1. Engage the 6 claws to install the integration control and panel assembly.



9. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



10. INSTALL REAR NO. 3 FLOOR BOARD


    B227791

  1. Engage the 2 guides to install the rear No. 3 floor board.



11. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



12. INSTALL REAR NO. 2 FLOOR BOARD


    B227788E01

  1. Engage the 3 guides <A>.

  1. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.



13. INSPECT HARD DISK DRIVE
(Click here)
