OUTER MIRROR SWITCH > INSPECTION

for Preparation Click here



1. INSPECT OUTER MIRROR SWITCH ASSEMBLY


  1. Check the mirror select switch and mirror surface adjust switch.

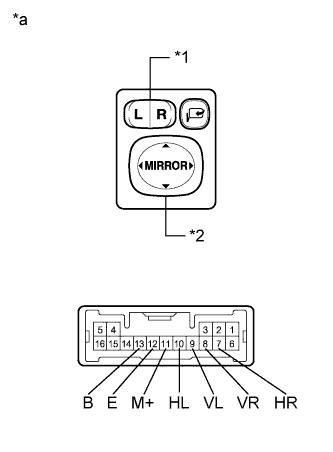

      B246906E06

    1. Turn the mirror select switch to the L position.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (for left side):
      Tester Connection
      		Switch Condition
      		Specified Condition
      9 (VL) - 13 (B)
      11 (M+) - 12 (E)
      		UP
      		Below 1 Ω
      OFF
      		10 kΩ or higher
      9 (VL) - 12 (E)
      11 (M+) - 13 (B)
      		DOWN
      		Below 1 Ω
      OFF
      		10 kΩ or higher
      10 (HL) - 13 (B)
      11 (M+) - 12 (E)
      		LEFT
      		Below 1 Ω
      OFF
      		10 kΩ or higher
      10 (HL) - 12 (E)
      11 (M+) - 13 (B)
      		RIGHT
      		Below 1 Ω
      OFF
      		10 kΩ or higher

    3. Turn the mirror select switch to the R position.

    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (for right side):
      Tester Connection
      		Switch Condition
      		Specified Condition
      8 (VR) - 13 (B)
      11 (M+) - 12 (E)
      		UP
      		Below 1 Ω
      OFF
      		10 kΩ or higher
      8 (VR) - 12 (E)
      11 (M+) - 13 (B)
      		DOWN
      		Below 1 Ω
      OFF
      		10 kΩ or higher
      7 (HR) - 13 (B)
      11 (M+) - 12 (E)
      		LEFT
      		Below 1 Ω
      OFF
      		10 kΩ or higher
      7 (HR) - 12 (E)
      11 (M+) - 13 (B)
      		RIGHT
      		Below 1 Ω
      OFF
      		10 kΩ or higher

      Text in Illustration
      *1
      		Mirror select switch
      *2
      		Mirror surface adjust switch
      *a
      		Component without harness connected
      (Outer Mirror Switch Assembly)
      If the result is not as specified, replace the outer mirror switch assembly.



  1. Check the mirror retract switch.

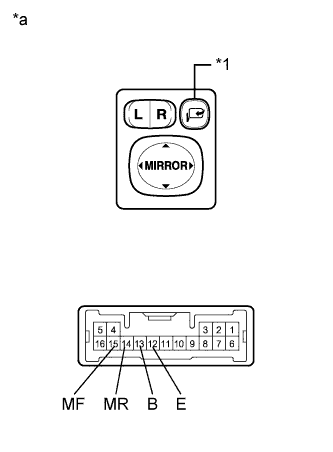

      B246906E07

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance:
      Tester Connection
      		Switch Condition
      		Specified Condition
      15 (MF) - 12 (E)
      		Mirror retract switch retract position
      		Below 1 Ω
      14 (MR) - 13 (B)
      		Below 1 Ω
      15 (MF) - 13 (B)
      		Mirror retract switch return position
      		Below 1 Ω
      14 (MR) - 12 (E)
      		Below 1 Ω

      Text in Illustration
      *1
      		Mirror retract switch
      *a
      		Component without harness connected
      (Outer Mirror Switch Assembly)
      If the result is not as specified, replace the outer mirror switch assembly.



  1. Check the LED illuminates.

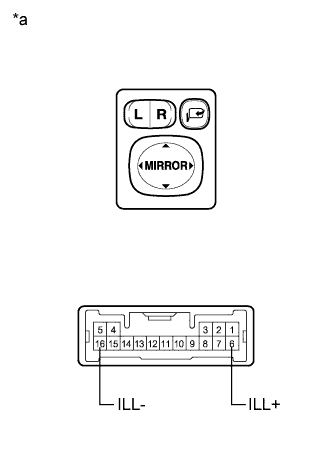

      B246906E08

    1. Battery voltage to the outer mirror switch assembly and check that the LED illuminates.

      Standard:
      Measurement Condition
      		Specified Condition
      Battery positive (+) → Terminal 6 (ILL+)
      Battery negative (-) → Terminal 16 (ILL-)
      		LED illuminates

      Text in Illustration
      *a
      		Component without harness connected
      (Outer Mirror Switch Assembly)
      If the result is not as specified, replace the outer mirror switch assembly.
