FRONT SEATBACK HEATER (for Manual Seat) > INSPECTION

for Preparation Click here



1. INSPECT FRONT SEATBACK HEATER (SEPARATE TYPE FRONT SEATBACK COVER)

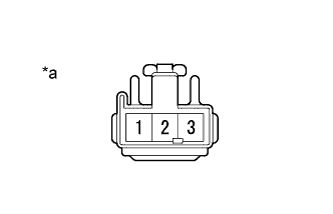

    B300429E01

  1. Measure the resistance according to the value(s) in the table below.
    Text in Illustration
    *a
    		Component without harness connected
    (Front Seatback Heater (Separate Type Front Seatback Cover))

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    3 - 1
    		Always
    		Below 6 Ω
    2 - 1
    		Always
    		Below 6 Ω

    If the result is not as specified, replace the seatback heater (separate type front seatback cover).
