HEADUP DISPLAY > REASSEMBLY

for Preparation Click here



1. INSTALL NO. 2 COMBINATION METER MIRROR CASE


2. INSTALL COMBINATION DISPLAY

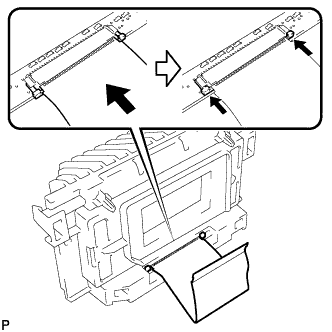

    E190669

  1. Connect the connector and install the No. 2 combination meter mirror wire to the combination display as shown in the illustration.

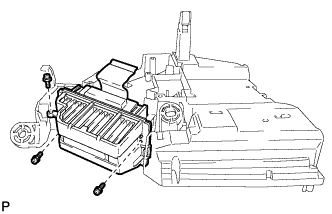

    E190665

  1. Install the combination display with the 3 screws.



3. INSTALL COMBINATION METER MIRROR ECU

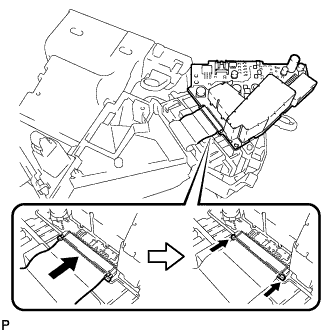

    E190664

  1. Connect the connector to install the combination meter mirror ECU as shown in the illustration.



4. INSTALL NO. 2 COMBINATION METER MIRROR WIRE

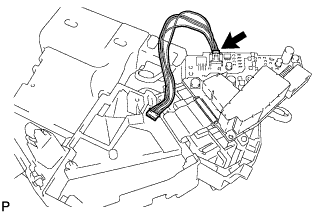

    E190662

  1. Connect the connector to install the No. 2 combination meter mirror wire.

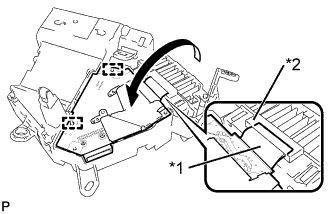

    E190661E01

  1. Engage the 2 guides as shown in the illustration.

    NOTICE:
    Make sure that the combination meter mirror wire is in the combination display case as shown in the illustration.

    Text in Illustration
    *1
    		Combination Meter Mirror Wire
    *2
    		Combination Display Case

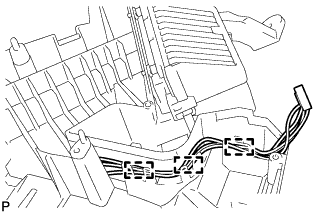

    E190659

  1. Engage the 3 clamps.



5. INSTALL NO. 2 COMBINATION METER MIRROR PLATE

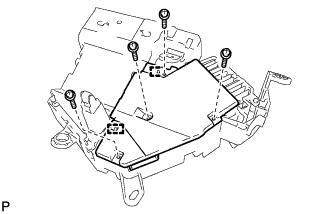

    E190658

  1. Engage the 2 guides.

  1. Install the No. 2 combination meter mirror plate with the 4 screws.



6. INSTALL NO. 2 COMBINATION METER MIRROR

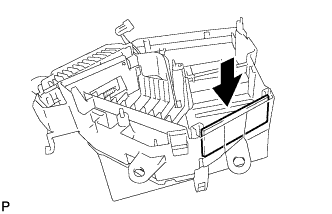

    E190657

  1. Install the No. 2 combination meter mirror as shown in the illustration.



7. INSTALL NO. 1 COMBINATION METER MIRROR PLATE

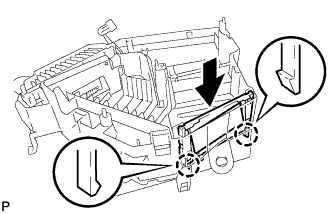

    E190655

  1. Engage the 2 claws to install the No. 1 combination meter mirror plate as shown in the illustration.



8. INSTALL COMBINATION METER MIRROR


    E190653

  1. Install the combination meter mirror with the 2 screws.

  1. Connect the connector.



9. INSTALL NO. 1 COMBINATION METER MIRROR CASE

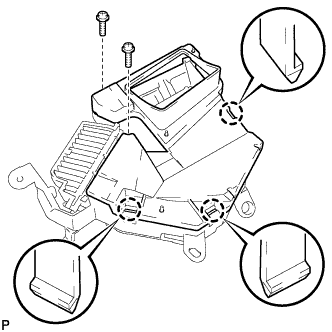

    E190652

  1. Engage the 3 claws.

  1. Install the No. 1 combination meter mirror case with the 2 screws.



10. INSTALL COMBINATION METER MIRROR GLASS

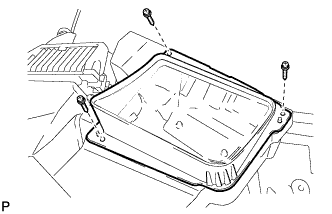

    E113764

  1. Install the combination meter mirror glass with the 3 screws.
