HEADUP DISPLAY > INSTALLATION

for Preparation Click here



1. INSTALL HEADUP DISPLAY

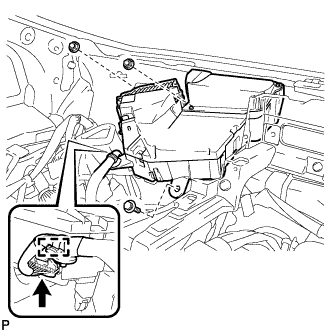

    E113762

  1. Install the headup display with the bolt and 2 nuts.

  1. Connect the connector.

  1. Engage the clamp.



2. INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

  1. Install the upper instrument panel assembly (Click here).
