SOLAR VENTILATION ECU > INSTALLATION

for Preparation Click here



1. INSTALL SOLAR VENTILATION ECU


    E189041

  1. Connect the connector.

  1. Remove the solar ventilation ECU with the bolt.



2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

  1. Connect the connector.

    NOTICE:
    Since the connectors for the air conditioning control assembly and the integration control and panel sub-assembly are the same shape, take care to connect each connector to the correct component.

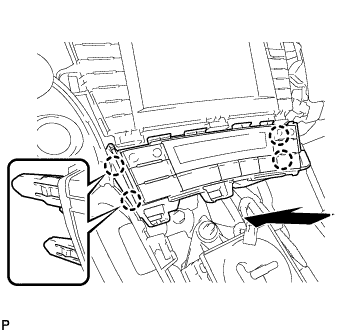

    E189054

  1. Engage the 4 claws to install the air conditioning control assembly.



3. INSTALL NAVIGATION RECEIVER WITH BRACKET (for Navigation Receiver Type)


    E188508

  1. Engage the 4 claws and temporarily install the navigation receiver with bracket as shown in the illustration.

  1. Install the navigation receiver with bracket with the 4 bolts.



4. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for Radio and Display Type)

  1. Connect each connector.

  1. Engage the 4 claws.

  1. Install the radio and display receiver assembly with bracket with the 4 bolts.



5. INSTALL RADIO TUNER OPENING COVER WITH BRACKET (w/o Radio Receiver)

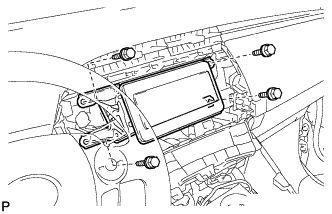

    B223593

  1. Install the radio tuner opening cover with bracket with the 4 bolts <B>.



6. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Radio Receiver)

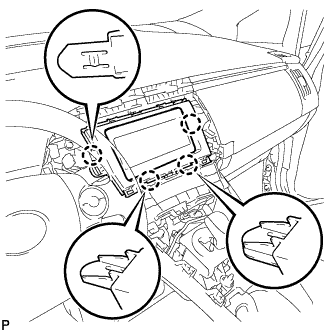

    B227341

  1. Engage the 4 claws to install the center instrument cluster finish panel sub-assembly.



7. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY


    B223459

  1. Connect the connector.

  1. Engage the 3 claws to install the upper instrument panel finish panel sub-assembly.



8. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH

  1. Connect the connector.

  1. Engage the 14 claws to install the instrument cluster finish panel garnish.



9. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

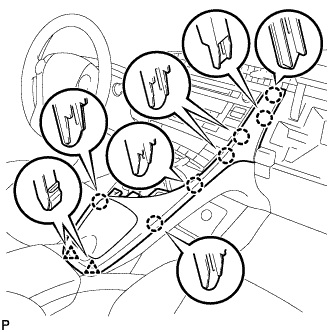

    B223456

  1. Engage the 7 claws and 2 clips to install the lower center instrument cluster finish panel sub-assembly.



10. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

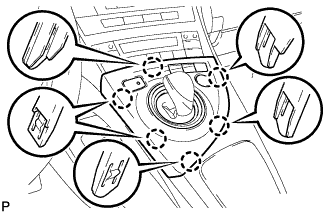

    B223453

  1. Connect each connector.

  1. Engage the 6 claws to install the integration control and panel assembly.



11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



12. INSTALL REAR NO. 3 FLOOR BOARD


    B227791

  1. Engage the 2 guides to install the rear No. 3 floor board.



13. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



14. INSTALL REAR NO. 2 FLOOR BOARD


    B227788E01

  1. Engage the 3 guides <A>.

  1. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.
