TCM > INSTALLATION

for Preparation Click here



1. INSTALL TRANSMISSION CONTROL ECU ASSEMBLY

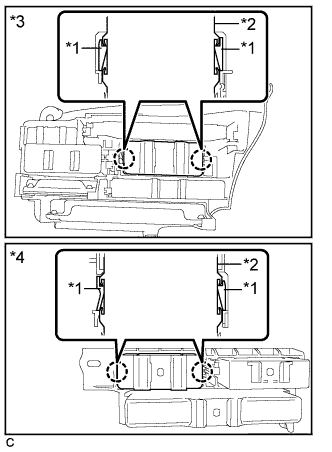

    C209271E01

  1. Engage the 2 claws to install the transmission control ECU assembly to the ECU integration box.
    Text in Illustration
    *1
    		Claw
    *2
    		Transmission Control ECU Assembly
    *3
    		LHD
    *4
    		RHD



2. INSTALL ECU INTEGRATION BOX (for LHD)


    E189828

  1. Install the ECU integration box with the 2 nuts and bolt.

    Torque:
    14 N*m{ 138 kgf*cm , 10 ft.*lbf }

  1. Engage the 3 clamps to connect the wire harness.

  1. Connect each connector.



3. INSTALL ECU INTEGRATION BOX (for RHD)

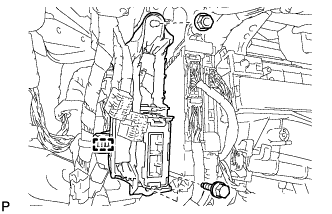

    E189818

  1. Install the ECU integration box with the nut and bolt.

    Torque:
    14 N*m{ 138 kgf*cm , 10 ft.*lbf }

  1. Engage the clamp to connect the wire harness.

  1. Connect each connector.



4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY


    B223650E01

  1. With the glove compartment door assembly opened approximately 55° from its closed position, engage the 2 hinges horizontally.
    Text in Illustration
    *a
    		Opened Approximately 55°
    *b
    		Closed

    NOTICE:
    Engaging the hinges from the top will deform the hinges. Be sure to install the glove compartment door assembly horizontally.

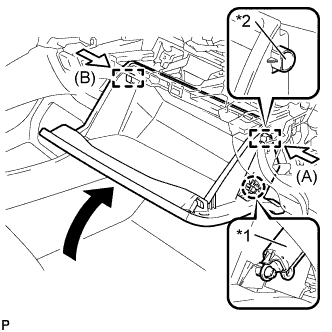

    B223648E01

  1. Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and engage the stoppers to install the glove compartment door assembly.
    Text in Illustration
    *1
    		Glove Compartment Door Stopper Sub-assembly
    *2
    		Stopper

  1. Engage the claw and connect the glove compartment door stopper sub-assembly.



5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

  1. Connect the connector.

  1. Engage the guide and 3 claws to install the No. 2 instrument panel under cover sub-assembly.



6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



7. INSTALL REAR NO. 3 FLOOR BOARD


    B227791

  1. Engage the 2 guides to install the rear No. 3 floor board.



8. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



9. INSTALL REAR NO. 2 FLOOR BOARD


    B227788E01

  1. Engage the 3 guides <A>.

  1. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.
