VACUUM SENSOR > INSTALLATION

for Preparation Click here



1. INSTALL MANIFOLD ABSOLUTE PRESSURE SENSOR

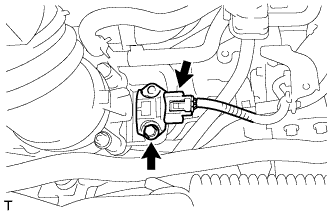

    A212672

  1. Install the manifold absolute pressure sensor with the bot.

    Torque:
    7.0 N*m{ 71 kgf*cm , 62 in.*lbf }

  1. Connect the connector.



2. INSTALL AIR CLEANER CASE


    A212314

  1. Install the air cleaner case with the 3 bolts.

    Torque:
    7.0 N*m{ 71 kgf*cm , 62 in.*lbf }

  1. Install the hose to the 3 clamps.

  1. Install the air cleaner filter element sub-assembly.



3. INSTALL INLET AIR CLEANER ASSEMBLY


    A269507

  1. Install the inlet air cleaner assembly with the 2 bolts.

    Torque:
    7.0 N*m{ 71 kgf*cm , 62 in.*lbf }



4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY


    A288960

  1. Install the air cleaner cap sub-assembly with the 2 clamps.

  1. Connect the air cleaner hose assembly and tighten the hose clamp.

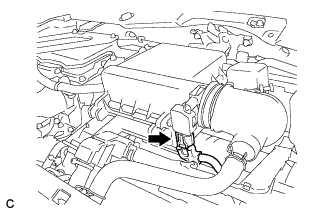

    A212311

  1. Connect the connector.



5. INSTALL NO. 2 CYLINDER HEAD COVER


    A213020

  1. Engage the 3 clips to install the cover.

    NOTICE:
    1. Be sure to engage the clips securely.
    2. Do not apply excessive force or hit the cover to engage the clips. This may cause the cover to break.
