REAR CENTER SEAT OUTER BELT ASSEMBLY > REMOVAL

for Preparation Click here



1. REMOVE REAR SEAT CUSHION ASSEMBLY


    B229992E01

  1. Disengage the 2 front hooks of the seat cushion from the vehicle body as shown in the illustration.
    Text in Illustration
    *1
    		100 mm (3.94 in.) or less
    *2
    		Hook
    *3
    		Guide

    NOTICE:
    Follow the instructions below carefully as the cushion frame deforms easily.


    1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.

    2. Repeat the above procedure for the other hook.

  1. Disengage the 2 guides of the seat cushion from the seatback.

  1. Remove the rear seat cushion assembly.



2. DISCONNECT REAR CENTER SEAT BELT ASSEMBLY


    B221512

  1. Remove the bolt and disconnect the anchor part of the rear center seat belt assembly.



3. REMOVE REAR SEAT HEADREST ASSEMBLY RH


    B230012

  1. Press the headrest support button and pull up the rear seat headrest assembly RH as shown in the illustration.



4. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY


    B230015

  1. Press the headrest support button and pull up the rear seat center headrest assembly as shown in the illustration.



5. REMOVE REAR SEATBACK ASSEMBLY RH

  1. Fold the rear seatback assembly RH forward.



    B233147E01

  1. Disengage the fastener.
    Text in Illustration
    *1
    		Fastener



    B230017

  1. Remove the 2 bolts and rear seatback assembly RH.



6. REMOVE REAR SEATBACK CENTER COVER (for LHD)


    B230019

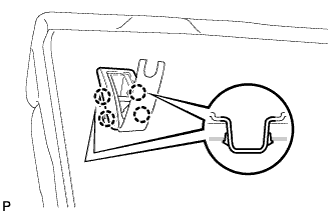

  1. Disengage the 4 claws and remove the rear seatback center cover.



7. REMOVE REAR SEATBACK COVER RH


    B230018

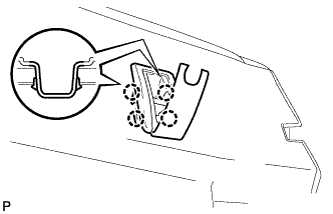

  1. Disengage the 4 claws and remove the rear seatback cover RH.



8. REMOVE REAR SEAT SHOULDER BELT GUIDE RH


    B230023

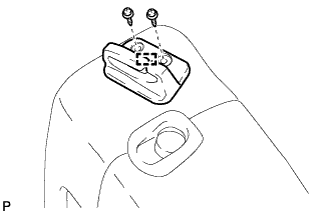

  1. Remove the 2 screws.

  1. Disengage the guide and remove the rear seat shoulder belt guide RH.



9. REMOVE REAR SEATBACK STOP BUTTON GROMMET


    B230027

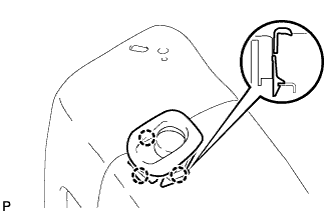

  1. Disengage the 3 claws and remove the rear seatback stop button grommet.



10. REMOVE CENTER ARMREST HINGE COVER


    B230031E01

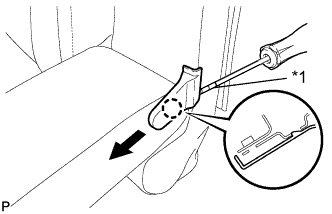

  1. Using a screwdriver wrapped with protective tape, disengage the claw and remove the center armrest hinge cover as shown in the illustration.
    Text in Illustration
    *1
    		Protective Tape



11. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY


    B230033

  1. Remove the bolt and bush.

  1. Separate the pin and remove the center armrest assembly.



    B158420

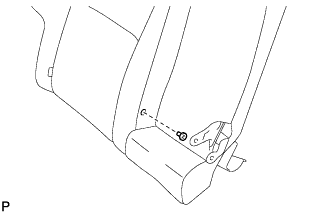

  1. Remove the bush.



12. REMOVE REAR SEATBACK COVER WITH PAD RH


    B230020

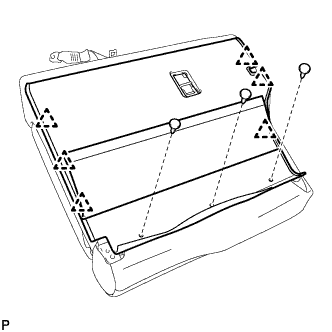

  1. Using a clip remover, remove the 3 clips.

  1. Disengage the 6 clips.



    B230021

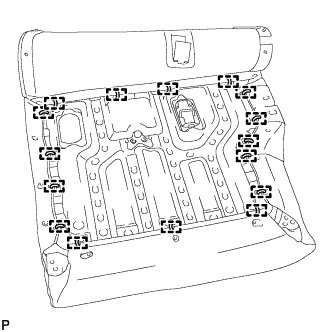

  1. Remove the 16 hog rings.

  1. Disengage the guide and remove the rear seat shoulder belt guide RH.



    B230024

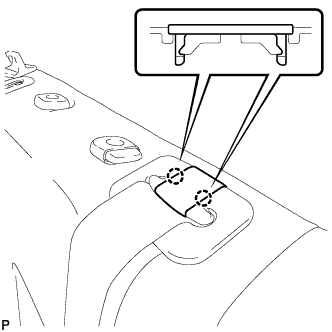

  1. Disengage the 2 claws and remove the seat belt anchor cover cap.



    B230025E01

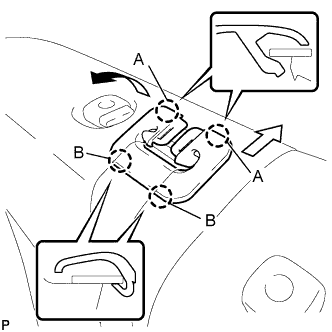

  1. Move the rear seat shoulder belt hole cover in the direction indicated by the arrow in the illustration to disengage the 2 claws (A).

  1. Move the rear seat shoulder belt hole cover in the direction indicated by the arrow in the illustration to disengage the 2 claws (B) and remove the cover.



    B230028

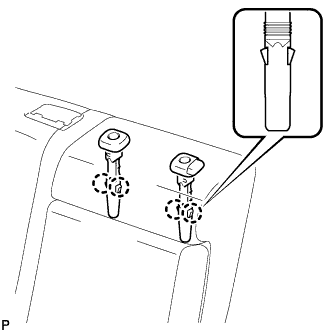

  1. Disengage the 4 claws and remove the 2 rear seat center headrest supports.



    B230029

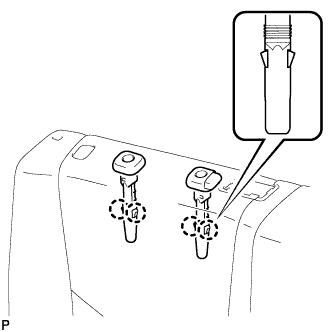

  1. Disengage the 4 claws and remove the 2 rear seat headrest supports.

  1. Remove the rear seatback cover with pad RH from the rear seatback frame sub-assembly RH.



13. REMOVE REAR CENTER SEAT BELT ASSEMBLY


    B221501

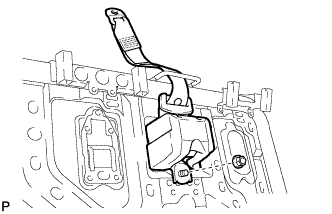

  1. Remove the nut and rear center seat belt assembly.
