REAR SEAT OUTER BELT ASSEMBLY > INSTALLATION

for Preparation Click here



1. INSTALL REAR SEAT OUTER BELT ASSEMBLY

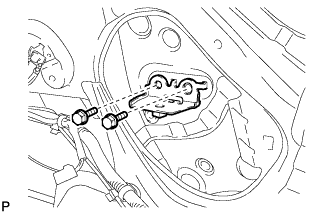

    B221499

  1. Install the ELR anchor bracket with the 2 bolts.

    Torque:
    42 N*m{ 428 kgf*cm , 31 ft.*lbf }

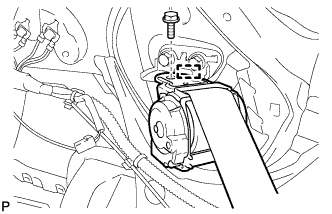

    B221515

  1. Engage the guide and install the rear seat outer belt assembly with the bolt.

    Torque:
    42 N*m{ 428 kgf*cm , 31 ft.*lbf }

  1. Check if the ELR locks.

    NOTICE:
    The check should be performed with the outer belt assembly installed.


    1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.



    B221519E01

  1. Connect the floor anchor end of the rear seat outer belt assembly with the bolt.
    Text in Illustration
    *1
    		Protruding Part

    Torque:
    42 N*m{ 428 kgf*cm , 31 ft.*lbf }

    NOTICE:
    Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding part of the floor panel.



2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH (for LH Side)


  1. Engage the 9 clips to install the roof side inner garnish assembly LH.


    B227806



3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

  1. Connect the connector.

  1. Engage the 7 claws and 2 clips.



  1. Install the deck trim side panel assembly LH with the screw.


    B227804



4. INSTALL TONNEAU COVER HOLDER CAP (for LH Side)


    B227801

  1. Engage the claw to install the tonneau cover holder cap.



5. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)


    B227798

  1. Engage the 2 guides.

  1. Install the 2 luggage hold belt striker assemblies with the 2 bolts.



6. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH (for RH Side)

HINT:
Use the same procedure described for the LH side.



7. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

  1. Engage the 7 claws and 2 clips.



  1. Install the deck trim side panel assembly RH with the screw.


    B227803



8. INSTALL TONNEAU COVER HOLDER CAP (for RH Side)

HINT:
Use the same procedure described for the LH side.



9. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)

HINT:
Use the same procedure described for the LH side.



10. INSTALL REAR SIDE SEATBACK ASSEMBLY LH (for LH Side)


    B230043

  1. Engage the 2 guides as shown in the illustration.



    B230041

  1. Install the rear side seatback assembly LH with the bolt.

    Torque:
    18 N*m{ 184 kgf*cm , 13 ft.*lbf }



11. INSTALL REAR SIDE SEATBACK ASSEMBLY RH (for RH Side)


12. INSTALL REAR SEAT CUSHION ASSEMBLY


13. INSTALL REAR DECK TRIM COVER


    B227796

  1. Engage the 4 claws and 4 guides to install the rear deck trim cover.



14. INSTALL DECK TRIM SERVICE HOLE COVER


    B227795

  1. Engage the 3 guides.

  1. Engage the 2 claws to install the deck trim service hole cover.



15. INSTALL REAR NO. 1 FLOOR BOARD


    B227794

  1. Engage the 2 claws and 2 clips.

  1. Install the rear No. 1 floor board with the bolt.



16. INSTALL REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY


    B227793

  1. Engage the claw and 2 clips to install the rear No. 2 floor board sub-assembly.



17. INSTALL REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY


    B227792

  1. Engage the 2 claws and 2 clips to install the rear No. 1 floor board sub-assembly.



18. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

  1. Install the tonneau cover assembly.



19. INSTALL DECK FLOOR BOX LH (for LH Side)


    B227790

  1. Engage the 2 guides.

  1. Install the deck floor box LH with the clip.



20. INSTALL REAR NO. 4 FLOOR BOARD (for LH Side)


    B227789

  1. Engage the guide to install the rear No. 4 floor board.



21. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP


    B227772E01

  1. Align the alignment mark (Red) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip LH.
    Text in Illustration
    *1
    		Alignment Mark (Red)

    NOTICE:
    After installation, check that the corners fit correctly.



22. INSTALL REAR DOOR SCUFF PLATE


    B227766

  1. Engage the 7 claws to install the rear door scuff plate LH.



23. INSTALL REAR NO. 3 FLOOR BOARD (for RH Side)


    B227791

  1. Engage the 2 guides to install the rear No. 3 floor board.



24. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



25. INSTALL REAR NO. 2 FLOOR BOARD


    B227788E01

  1. Engage the 3 guides <A>.

  1. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.
