REAR SEAT INNER BELT ASSEMBLY (for RH Side) > REMOVAL

for Preparation Click here



1. REMOVE REAR SEAT CUSHION ASSEMBLY


    B229992E01

  1. Disengage the 2 front hooks of the seat cushion from the vehicle body as shown in the illustration.
    Text in Illustration
    *1
    		100 mm (3.94 in.) or less
    *2
    		Hook
    *3
    		Guide

    NOTICE:
    Follow the instructions below carefully as the cushion frame deforms easily.


    1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.

    2. Repeat the above procedure for the other hook.

  1. Disengage the 2 guides of the seat cushion from the seatback.

  1. Remove the rear seat cushion assembly.



2. REMOVE REAR SEAT HEADREST ASSEMBLY (for Buckle with Switch)

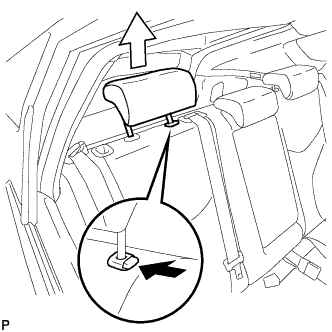

    B230012

  1. Press the headrest support button and pull up the rear seat headrest assembly RH as shown in the illustration.



3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for Buckle with Switch)

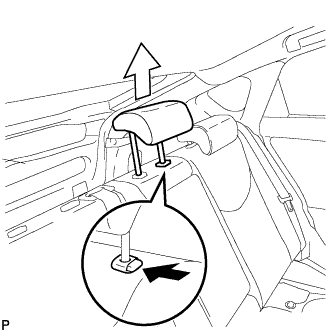

    B230015

  1. Press the headrest support button and pull up the rear seat center headrest assembly as shown in the illustration.



4. DISCONNECT REAR CENTER SEAT BELT ASSEMBLY

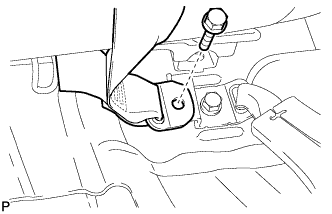

    B221512

  1. Remove the bolt and disconnect the anchor part of the rear center seat belt assembly.



5. REMOVE REAR SEATBACK ASSEMBLY RH (for Buckle with Switch)

  1. Fold the rear seatback assembly RH forward.



    B233147E01

  1. Disengage the fastener.
    Text in Illustration
    *1
    		Fastener



    B230017

  1. Remove the 2 bolts and rear seatback assembly RH.



6. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

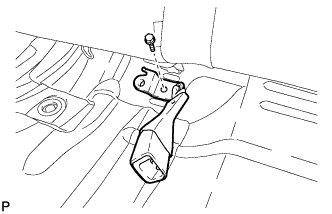

    B221495

  1. Remove the bolt and rear seat inner belt assembly RH.



7. REMOVE REAR SEAT INNER BELT ASSEMBLY RH (for Buckle with Switch)

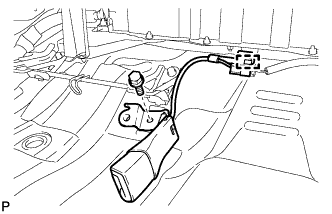

    B226683

  1. Disconnect the connector and disengage the clamp.

  1. Remove the bolt and the rear seat inner belt assembly RH.
