INTEGRATION RELAY > INSTALLATION

for Preparation Click here



1. INSTALL NO. 1 INTEGRATION RELAY


    E189817

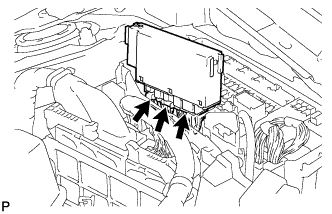

  1. Connect the 3 connectors.



    E186346

  1. Engage the 2 claws to install the No. 1 integration relay as shown in the illustration.



2. INSTALL NO. 1 RELAY BLOCK COVER


    E189815

  1. Engage the 3 claws to install the No. 1 relay block cover.



3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).
