MICROPHONE (w/o Sliding Roof) > REMOVAL

for Preparation Click here



1. REMOVE ROOF TOP MOULDING


    B227832

  1. Using moulding remover B, disengage the 3 claws and 2 clips, and remove the roof top moulding.



2. REMOVE MAP LIGHT ASSEMBLY


    E189673

  1. Disengage the 4 clips and 2 guides as shown in the illustration.

  1. Disconnect the connector and remove the map light assembly.



3. REMOVE THEFT WARNING RADAR SENSOR (w/ Theft Deterrent System)

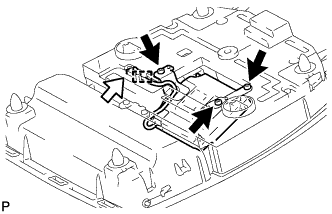

    B229305

  1. Disconnect the connector.

  1. Disengage the clamp.

  1. Remove the 3 screws and theft warning radar sensor.



4. REMOVE TELEPHONE MICROPHONE ASSEMBLY (w/o Theft Deterrent System)

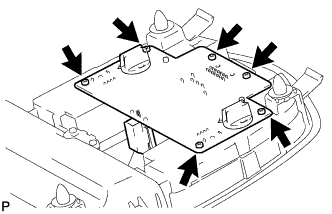

    E189433

  1. Remove the 6 screws and map light base.

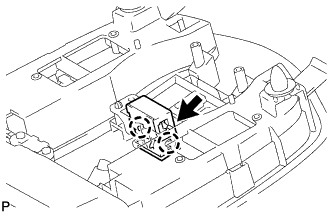

    E189438

  1. Disconnect the connector.

  1. Disengage the 2 claws and remove the telephone microphone assembly.



5. REMOVE TELEPHONE MICROPHONE ASSEMBLY (w/ Theft Deterrent System)

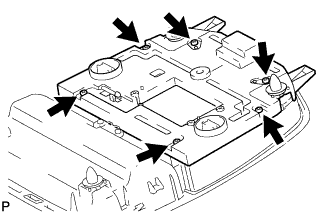

    E189434

  1. Remove the 6 screws and map light cover.

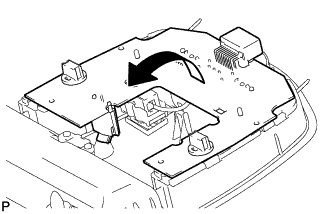

    E189440

  1. Pull up the map light base as shown in the illustration.

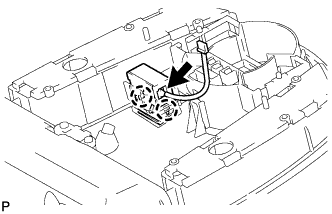

    E189442

  1. Disconnect the connector.

  1. Disengage the 2 claws and remove the telephone microphone assembly.
