MICROPHONE (w/ Sliding Roof) > INSTALLATION

for Preparation Click here



1. INSTALL TELEPHONE MICROPHONE ASSEMBLY


    E189432

  1. Engage the 2 claws to install the telephone microphone assembly.

  1. Connect the connector.

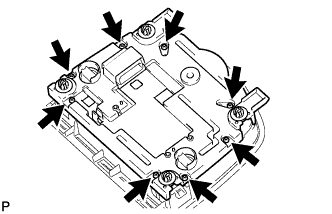

    E189431

  1. Install the map light cover with the 8 screws.



2. INSTALL THEFT WARNING RADAR SENSOR (w/ Theft Deterrent System)


    B229305

  1. Install the theft warning radar sensor with the 3 screws.

  1. Engage the clamp.

  1. Connect the connector.



3. INSTALL MAP LIGHT ASSEMBLY

  1. Connect the connector.



    E189672

  1. Engage the 2 guides and 4 clips, and install the map light assembly.



4. INSTALL ROOF TOP MOULDING


    B227833

  1. Engage the 3 claws and 2 clips to install the roof top moulding.
