STEREO COMPONENT AMPLIFIER > REMOVAL

for Preparation Click here



1. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)
(Click here)


2. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)
(Click here)


3. REMOVE AUDIO AMPLIFIER COVER

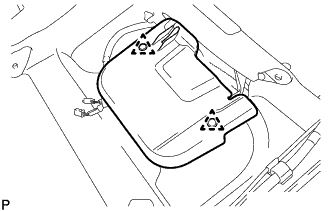

    E244911

  1. Using a clip remover, remove the 2 clips and audio amplifier cover.



4. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

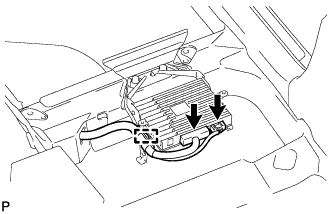

    E240824

  1. Disconnect the 2 connectors.

  1. Disengage the clamp and disconnect the wire harness.



    E240825

  1. Remove the 2 bolts and stereo component amplifier assembly.
