SECURITY INDICATOR LIGHT ASSEMBLY > INSPECTION

for Preparation Click here

1. Apply battery voltage from the wire harness back side between the specified terminals of the indicator, and check the lighting condition of the security indicator.


   Standard

   Measurement Condition	Specified Condition
   Battery positive (+) → Terminals L27-22 (LP) Battery negative (-) → Terminals L27-30 (ES)	Security indicator comes on

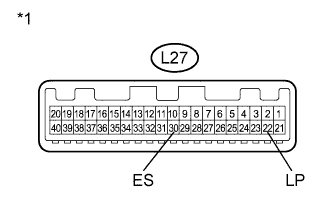

   Text in illustration

   *1	Component with harness connected (Combination Meter Assembly (Security Indicator Light))

   If the result is not as specified, replace the No. 3 Meter Circuit Plate.
