AUDIO AND VISUAL SYSTEM > Portable Player cannot be Connected Manually/Automatically

for Preparation Click here


INSPECTION PROCEDURE

HINT:
Some versions of "Bluetooth" compatible audio players may not function, or the function may be limited using the radio and display receiver assembly, even if the portable audio player itself can play files (Click here).

1.CHECK CONNECTED DEVICE SETTINGS

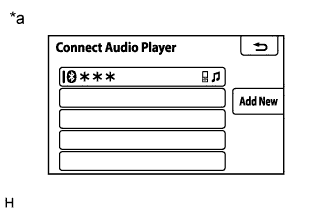

    E226307E01

  1. Display the "Connect Audio Player" screen.

  1. Check if the portable player is registered as a connected device.

    NOTICE:
    If a cellular phone is used as a portable player, it must be registered independently from the registration that is performed for the hands-free system.

    HINT:
    Only 5 portable players can be registered.

    Result:
    Result
    		Proceed to
    The portable player is registered as a connected device.
    		A
    The portable player is not registered as a connected device.
    		B

    Text in Illustration
    *a
    		Example



B
REGISTER PORTABLE PLAYER AS CONNECTED DEVICE
A


2.CHECK SYMPTOMS

  1. Check the connection condition between the portable player and radio and display receiver assembly.

    HINT:
    The portable player cannot be connected under any of the following conditions:
    1. The portable player is connected to another device.
    2. The portable player is connected to the radio and display receiver assembly using the hands-free function.
    3. The radio and display receiver assembly has cleared the portable player registration.
    4. The portable player is off.

    Result:
    Result
    		Proceed to
    The portable player cannot be connected automatically.
    		A
    The portable player cannot be connected manually.
    		B



B
Go to step 4
A


3.CHECK AUTOMATIC CONNECTION SETTINGS

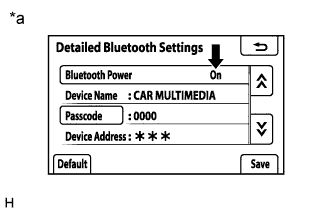

    E225860E01

  1. Display the "Detailed Bluetooth Settings" screen.

  1. Check automatic connection settings of the "Bluetooth" audio.

    1. Check if "On" is displayed for "Bluetooth Power" on the "Detailed Bluetooth Settings" screen.

      OK:
      "On" is displayed for "Bluetooth Power".

      Text in Illustration
      *a
      		Example



NG
TURN "Bluetooth" POWER TO "On"
OK


4.CHECK PORTABLE PLAYER STATUS

  1. Check the status of the portable player.

    1. Check that the portable player is not in standby mode.

    2. Check that the portable player is not connected to another device (headphones etc.).

      OK:
      The portable player is not in standby mode and not connected to another device (headphones etc.).



NG
TAKE PORTABLE PLAYER OUT OF STANDBY MODE AND DISCONNECT OTHER DEVICES (HEADPHONES etc.)
OK


5.CHECK USING ANOTHER "Bluetooth" AUDIO COMPATIBLE VEHICLE OF SAME MODEL

  1. Check if the portable player can be connected manually/automatically on another "Bluetooth" audio compatible vehicle of the same model.

    OK:
    The portable player can be connected manually/automatically.



NG
PORTABLE PLAYER IS NOT COMPATIBLE
OK


6.REMOVE ADDITIONAL DEVICES WHICH USE RADIO WAVES

  1. Remove additional devices which use radio waves.

  1. Check if the portable player can be connected manually/automatically.

    OK:
    The portable player can be connected manually/automatically.



NG
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE (Click here)
OK

END
