EXHAUST PIPE GAS CONTROL ACTUATOR > REMOVAL

for Preparation Click here



1. REMOVE FRONT SPOILER COVER (w/ Front Spoiler)


2. REMOVE ENGINE UNDER COVER


3. DRAIN ENGINE COOLANT (for Engine)

NOTICE:
Do not remove the reservoir tank cap, cylinder block drain cock plugs and radiator drain cock plug while the engine and radiator are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

  1. Loosen the radiator drain cock plug and drain the coolant.

    HINT:
    Collect the coolant in a container and dispose of it according to the local regulations.



  1. Loosen the cylinder block drain cock plug.

    HINT:
    The plug is on the back of the generator on the exhaust manifold side.

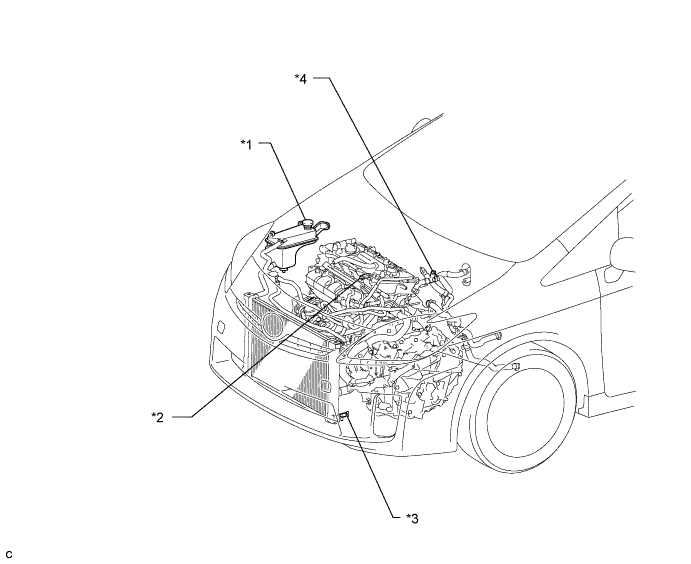

    A216061E01


    Text in Illustration
    *1
    		Reservoir Tank Cap
    		*2
    		Cylinder Block Drain Cock Plug
    *3
    		Radiator Drain Cock Plug
    		*4
    		Air Release Valve



4. REMOVE EXHAUST PIPE GAS CONTROL ACTUATOR

NOTICE:
When removing the exhaust pipe gas control actuator, use caution because coolant may spill out from the exhaust heat recirculation system.



    A216063

  1. Disconnect the 2 water hoses.



    A216068E01

  1. Using a screwdriver with the tip taped, pry the portion indicated in the illustration to disengage the spring.
    Text in Illustration
    *1
    		Protective Tape

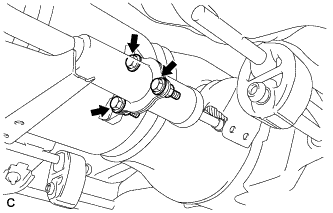

    A216062

  1. Remove the 3 bolts, 3 nuts, gasket and exhaust pipe gas control actuator case.

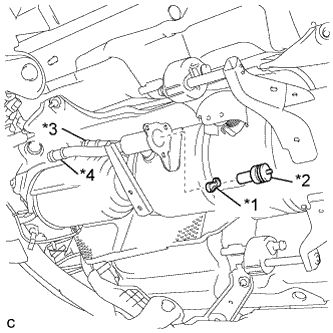

    A216060E01

  1. While closing port A, apply compressed air to port B to remove the exhaust pipe gas control actuator shown in the illustration.
    Text in Illustration
    *1
    		Exhaust Pipe Gas Control Stopper
    *2
    		Exhaust Pipe Gas Control Actuator
    *3
    		Port A
    *4
    		Port B

    HINT:
    Use a piece of cloth to catch the exhaust pipe gas control actuator.
