STOP LIGHT CONTROL RELAY > REMOVAL

for Preparation Click here



1. REMOVE FRONT DOOR SCUFF PLATE


    B227761

  1. Disengage the 10 claws and remove the front door scuff plate LH.



2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY


    B227764

  1. Remove the clip.

  1. Disengage the 2 clips and remove the cowl side trim sub-assembly LH.



3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY


    B223460

  1. Remove the screw <C>.



    B223461

  1. Disengage the 6 claws and clip as shown in the illustration.



    B223463

  1. Disengage the claw and 2 guides and disconnect the hood lock control cable.

  1. Disconnect each connector and clamp, and remove the lower instrument panel finish panel assembly.



4. REMOVE STOP LIGHT CONTROL ECU ASSEMBLY (for LHD)

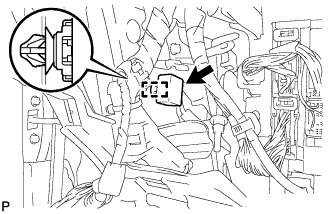

    E189668

  1. Using a clip remover, disengage the clamp.

  1. Disconnect the connector and remove the stop light control ECU assembly.



5. REMOVE STOP LIGHT CONTROL ECU ASSEMBLY (for RHD)

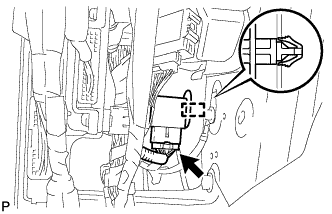

    E189667

  1. Using a clip remover, disengage the clamp.

  1. Disconnect the connector and remove the stop light control ECU assembly.
