STOP LIGHT SWITCH > REMOVAL

for Preparation Click here



1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for LHD)


    B223658

  1. Remove the 2 screws <D>.

  1. Disengage the claw and guide.

  1. Disconnect each connector and remove the No. 1 instrument panel under cover sub-assembly.



2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for RHD)


    B223634

  1. Remove the screw <D>.

  1. Disengage the 2 claws and guide.

  1. Disconnect each connector and remove the No. 1 instrument panel under cover sub-assembly.



3. REMOVE STOP LIGHT SWITCH ASSEMBLY


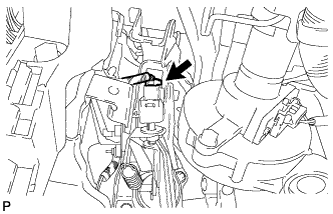

    E189653

  1. Disconnect the connector.

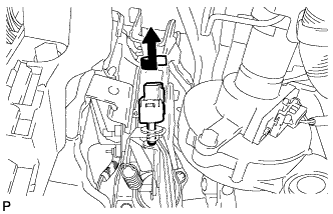

    E189656

  1. Turn the stop light switch assembly counterclockwise and remove it.
