GLOVE BOX LIGHT > INSTALLATION

for Preparation Click here



1. INSTALL GLOVE BOX LIGHT ASSEMBLY


    E189698

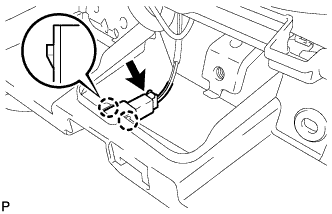

  1. Engage the 2 claws and install the glove box light assembly.

  1. Connect the connector.



2. INSTALL GLOVE COMPARTMENT DOOR

  1. Open the glove compartment door assembly.



    B223486

  1. Insert the glove compartment door as shown in the illustration.

  1. Engage the 7 claws to install the glove compartment door.



3. INSTALL NO. 2 INSTRUMENT PANEL REGISTER


    B223484

  1. Engage the 3 claws and clip to install the No. 2 instrument panel register.



4. INSTALL NO. 1 SIDE DEFROSTER NOZZLE


    B223481

  1. Engage the 3 claws to install the No. 1 side defroster nozzle.



5. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY


    B223456

  1. Engage the 7 claws and 2 clips to install the lower center instrument cluster finish panel sub-assembly.



6. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY


    B223453

  1. Connect each connector.

  1. Engage the 6 claws to install the integration control and panel assembly.
