PARKING BRAKE SWITCH (for RHD) > REMOVAL

for Preparation Click here



1. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY

HINT:
Refer to the procedures up to Remove Parking Brake Control Pedal Assembly (Click here).



2. REMOVE PARKING BRAKE SWITCH ASSEMBLY

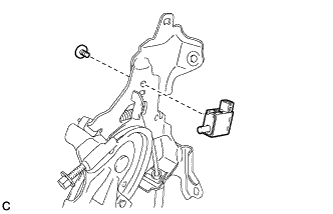

    C206666

  1. Remove the screw and parking brake switch assembly from the parking brake control pedal assembly.
