REAR SPOILER > INSTALLATION

for Preparation Click here

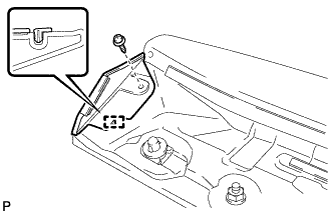

1. Engage the guide and install the rear side spoiler LH.


2. Install the screw.


HINT:

Use the same procedure for the RH side and LH side.

1. Secure the wire running through the rear spoiler assembly to the center stop light set wire harness.

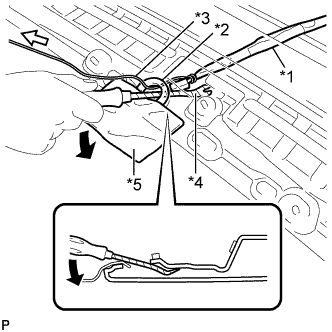

2. Place a cloth on the rear spoiler assembly as shown in the illustration.


   Text in Illustration

   *1	Wire Harness
   *2	Gasket
   *3	Wire
   *4	protective tape
   *5	Cloth

3. Using a clip remover wrapped with protective tape, widen the space inside the rear spoiler assembly, and pull the wire to pass the center stop light set wire harness through the spoiler.


   NOTICE:

   1. Do not apply excess force to the rear spoiler assembly or it may be damaged.

   2. Do not damage the gasket of the rear spoiler assembly.

   3. Do not apply excess force when pulling the wire harness or it may break.

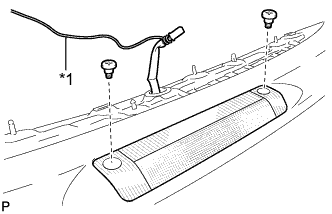

4. Install the center stop light set with the 2 screws to the rear spoiler assembly.


   Text in Illustration

   *1

   Wire

   Torque:

   1.2 N*m{ 12 kgf*cm , 11 in.*lbf }

5. Remove the wire from the old center stop light set wire harness.


1. Engage the 2 clips to install the rear spoiler assembly.


2. Install the 5 nuts.


   Torque:

   9.0 N*m{ 92 kgf*cm , 80 in.*lbf }

3. Connect the connector.


1. Engage the 5 clips and 2 guides to install the back door trim board.

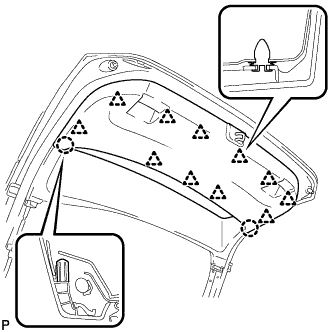

1. Engage the 11 clips and 2 claws to install the back door panel trim assembly.

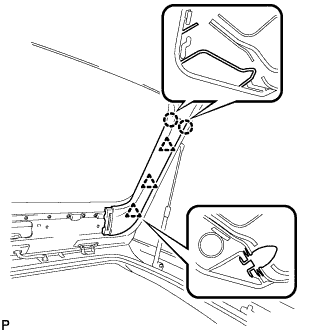

1. Engage the 3 clips and 2 claws to install the back door side garnish LH.

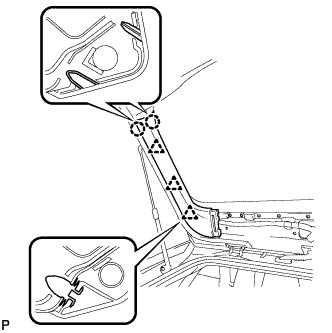

1. Engage the 3 clips and 2 claws to install the back door side garnish RH.


1. Engage the 4 clips and 4 claws to install the upper back door trim panel assembly.
