ROOF DRIP SIDE FINISH MOULDING > REMOVAL

for Preparation Click here



1. REMOVE ROOF DRIP CENTER SIDE FINISH MOULDING (w/o Sliding Roof)

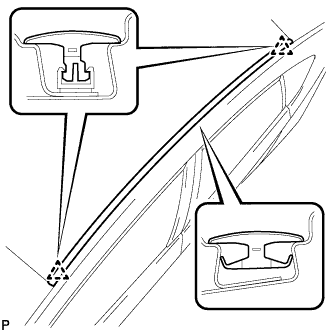

    B229381

  1. Disengage the 2 clips and remove the roof drip center side finish moulding.

    NOTICE:
    1. Do not remove the clips.
    2. If the clips are damaged or dropped off, replace them with new clips.



2. REMOVE ROOF DRIP CENTER SIDE FINISH MOULDING (w/ Sliding Roof)

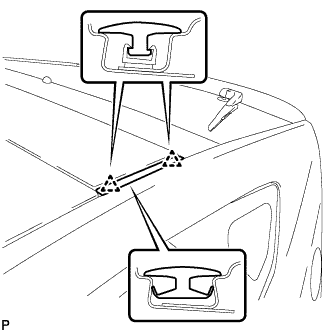

    B229382

  1. Disengage the 2 clips and remove the roof drip center side finish moulding.

    NOTICE:
    1. Do not remove the clips.
    2. If the clips are damaged or dropped off, replace them with new clips.
