NAME PLATE > REMOVAL

for Preparation Click here


HINT:
When removing the name plates or emblems, heat the vehicle body and name plates using a heat light.
Heating Temperature
Item
Temperature
Vehicle Body
40 to 60°C (104 to 140°F)
Name Plate or emblem
20 to 30°C (68 to 86°F)

NOTICE:
Do not heat the vehicle body, name plates or emblems excessively.



1. REMOVE LUGGAGE COMPARTMENT DOOR EMBLEM

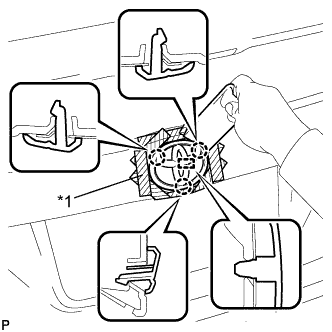

    B229368E01

  1. Put protective tape around the luggage component door emblem.
    Text in Illustration
    *1
    		Protective Tape

  1. Using a moulding remover, disengage the 3 claws and pin and remove the luggage component door emblem.

    NOTICE:
    Be careful not to damage the vehicle body.



2. REMOVE NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE

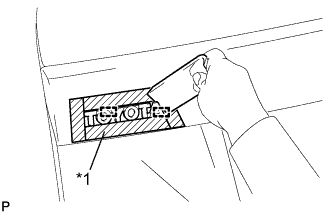

    B229370E01

  1. Put protective tape around the No. 1 luggage component door name plate.
    Text in Illustration
    *1
    		Protective Tape

  1. Using a moulding remover, peel off the double-sided tape and disengage the 2 pins to remove the No. 1 luggage component door name plate.

    NOTICE:
    Be careful not to damage the vehicle body.



3. REMOVE NO. 2 BACK DOOR NAME PLATE

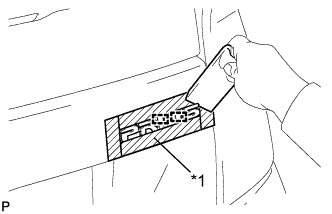

    B229374E01

  1. Put protective tape around the No. 2 back door name plate.
    Text in Illustration
    *1
    		Protective Tape

  1. Using a moulding remover, peel off the double-sided tape and disengage the 2 pins to remove the No. 2 back door name plate.

    NOTICE:
    Be careful not to damage the vehicle body.



4. REMOVE BACK DOOR NAME PLATE

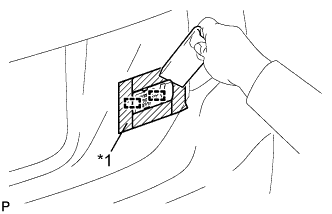

    B229378E01

  1. Put protective tape around the back door name plate.
    Text in Illustration
    *1
    		Protective Tape

  1. Using a moulding remover, peel off the double-sided tape and disengage the 2 pins to remove the back door name plate.

    NOTICE:
    Be careful not to damage the vehicle body.



5. REMOVE SIDE PANEL EMBLEM

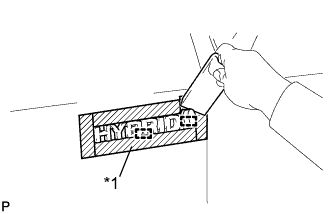

    B229364E01

  1. Put protective tape around the side panel emblem.
    Text in Illustration
    *1
    		Protective Tape

  1. Using a moulding remover, peel off the double-sided tape and disengage the 2 pins to remove the side panel emblem.

    NOTICE:
    Be careful not to damage the vehicle body.

    HINT:
    Use the same procedure for the RH side and LH side.
