CENTER POWER OUTLET SOCKET > REMOVAL

for Preparation Click here



1. REMOVE REAR CONSOLE BOX ASSEMBLY

  1. Remove the rear console box assembly (Click here).



2. REMOVE CONSOLE REAR END PANEL

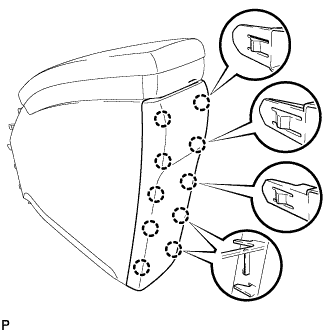

    B227309

  1. Disengage the 10 claws to remove the console rear end panel.



3. REMOVE CENTER POWER OUTLET SOCKET ASSEMBLY

  1. Disconnect the connector.

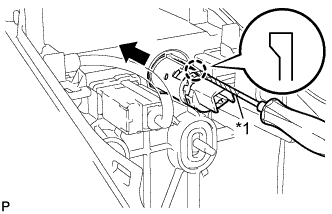

    E188644E01

  1. Using a screwdriver, disengage the claw and remove the center power outlet socket assembly.
    Text in Illustration
    *1
    		Protective Tape

    HINT:
    Tape the screwdriver tip before use.



4. REMOVE CENTER POWER OUTLET SOCKET COVER

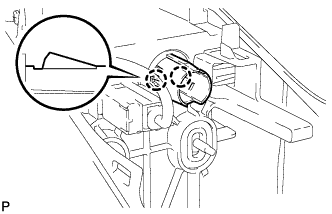

    E188645

  1. Disengage the 2 claws and remove the center power outlet socket cover.
