REAR BUMPER > INSTALLATION

for Preparation Click here



1. INSTALL REAR BUMPER ASSEMBLY


    B228482

  1. Engage the 4 claws and install the rear bumper assembly as shown in the illustration.

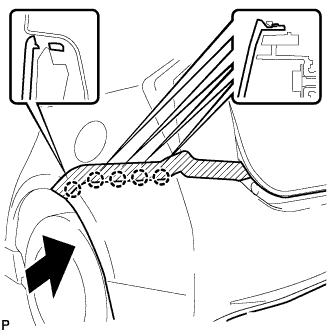

    B228480

  1. Engage the 5 claws.

    HINT:
    Use the same procedure for the RH side and LH side.

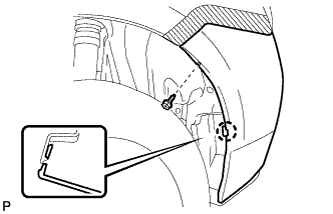

    B228478

  1. Install the screw.

    Torque:
    3.0 N*m{ 31 kgf*cm , 27 in.*lbf }

    HINT:
    Use the same procedure for the RH side and LH side.

  1. Engage the claw.

    HINT:
    Use the same procedure for the RH side and LH side.



    B228476

  1. Engage the 2 rear bumper upper stoppers and install the 2 screws.

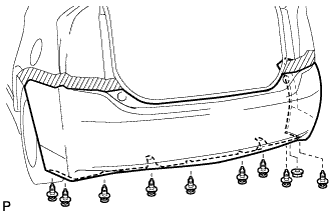

    B228477

  1. Install the 9 clips.

  1. Install the nut.



2. BUMPER POSITION SETTING (w/ Intelligent Parking Assist System)
(Click here)
