FRONT BUMPER > REMOVAL

for Preparation Click here



1. REMOVE RADIATOR SUPPORT OPENING COVER


    B294728

  1. Remove the 3 clips.

  1. Disengage the 2 claws and remove the radiator support opening cover.



2. REMOVE FRONT BUMPER ASSEMBLY


    B294729E01

  1. Put protective tape around the front bumper assembly.
    Text in Illustration
    *1
    		Protective Tape

    HINT:
    Use the same procedure for the RH side and LH side.



    B294730

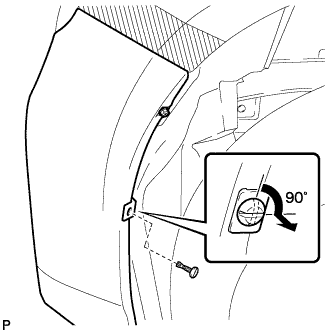

  1. Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

    HINT:
    Use the same procedure for the RH side and LH side.



    B299402

  1. Remove the screw.

    HINT:
    Use the same procedure for the RH side and LH side.



    B294733

  1. Remove the 2 bolts and 4 screws.

  1. Using a clip remover, remove the 7 clips.

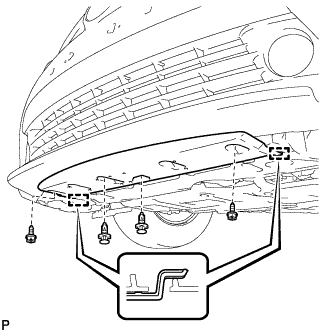

  1. w/ Front Spoiler:



      B299337

    1. Using a clip remover, remove the 2 clips.

    2. Remove the 2 screws.

    3. Disengage the 2 guides and remove the front spoiler cover.



    B294734

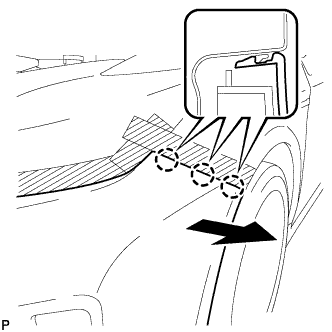

  1. Disengage the 3 claws and remove the front bumper assembly.

    HINT:
    Use the same procedure for the RH side and LH side.



    B294736

  1. Pull back the side of the front bumper assembly as shown in the illustration and disconnect the connector.

    NOTICE:
    Do not apply excessive force when separating the front bumper.



  1. w/ Headlight Cleaner System:



      B299338

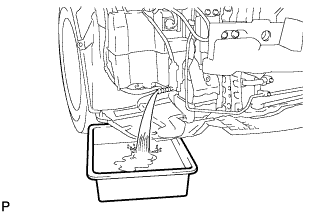

    1. Disconnect the headlight cleaner hose and drain the washer fluid.

      HINT:
      Use a container to collect the washer fluid.



    B294738

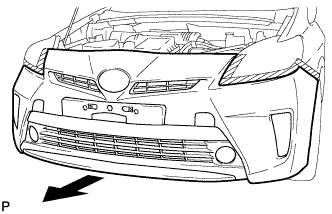

  1. Remove the front bumper assembly as shown in the illustration.
