MASS AIR FLOW METER > REMOVAL

for Preparation Click here



1. REMOVE NO. 2 CYLINDER HEAD COVER


    A213020

  1. Remove the 3 clips and No. 2 cylinder head cover.

    NOTICE:
    1. Attempting to disengage both front and rear clips at the same time may cause the cover to break.
    2. Pull the cover straight up to remove. Attempting to pull the cover forward may cause it to break.

    NOTICE:
    Attempting to disengage both front and rear clips at the same time may cause the cover to break.



2. REMOVE MASS AIR FLOW METER

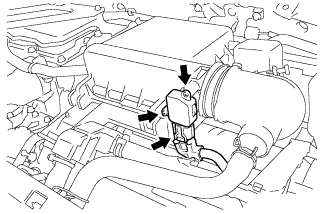

    A216912

  1. Disconnect the mass air flow meter connector.

  1. Remove the 2 screws and the mass air flow meter.
