POWER WINDOW REGULATOR MOTOR (for Rear Door) > REMOVAL

for Preparation Click here

HINT:

1. Use the same procedure for the RH side and LH side.

2. The procedure listed below is for the LH side.


1. Disengage the 2 guides <A> as shown in the illustration.


2. Disengage the 3 guides <B> and remove the rear No. 2 floor board.


1. Remove the rear deck floor box.


1. Disengage the 2 guides and remove the rear No. 3 floor board.

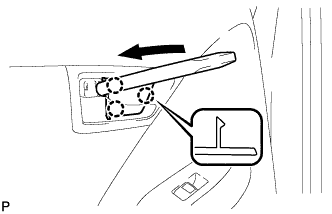

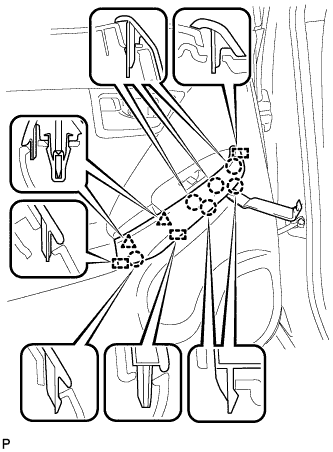

1. Using a moulding remover, disengage the 3 claws and remove the rear door inside handle bezel plug.


1. Using a moulding remover, disengage the 6 claws, 2 clips and 3 guides, and remove the door assist grip cover.


1. Disengage the 7 claws and 2 guides.


2. Disconnect the connector and remove the rear power window regulator switch assembly with rear door armrest base panel.


1. Remove the rear door armrest cover.

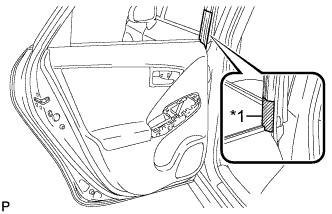

1. Put protective tape around the rear door panel.


   Text in Illustration

   *1	Protective Tape

2. Remove the 2 screws.

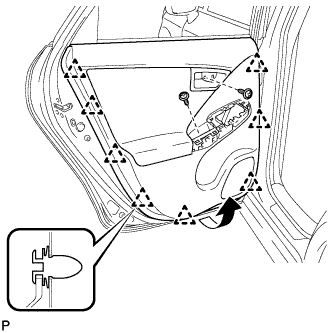

3. Using a clip remover, disengage the 8 clips.


4. Pull out the rear door trim board sub-assembly in the direction indicated by the arrow in the illustration.


5. Raise the rear door trim board sub-assembly and remove the rear door trim board sub-assembly together with the rear door inner glass weatherstrip.


6. Disengage the 2 claws and disconnect the rear door inside handle sub-assembly.


7. for 8 Speakers:



   1. Disconnect the connector.

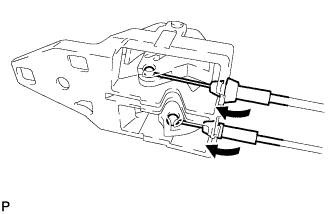

1. Disconnect the rear door lock remote control cable assembly and rear door inside locking cable assembly, and remove the rear door inside handle sub-assembly.


1. Remove the 2 screws and rear door trim bracket.


1. Disconnect the 2 connectors.

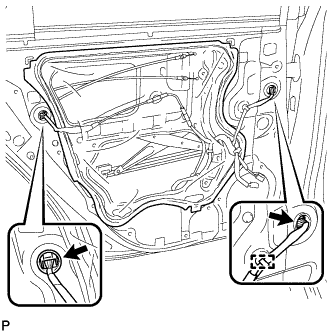

2. Disengage the clamp and remove the rear door service hole cover.


   HINT:

   Remove any remaining butyl tape from the door.

1. Remove the rear door glass run.


1. Remove the screw.


2. Remove the bolt and rear door window guide sub-assembly.


1. Loosen the temporary screw.


   Text in Illustration

   *1	Temporary Screw

2. Remove the 2 screws and rear door rear guide seal.


3. Remove the temporary screw from the rear door window division bar sub-assembly.


1. Connect the rear power window regulator motor connector.


2. Connect the power window regulator switch assembly and move the rear door glass sub-assembly so that the door glass bolts can be seen.


3. Disconnect the power window regulator switch assembly and rear power window regulator motor connector.



   1. w/ Navigation System for HDD:


      NOTICE:

      After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.

4. Disconnect the cable from the negative (-) battery terminal.


   NOTICE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

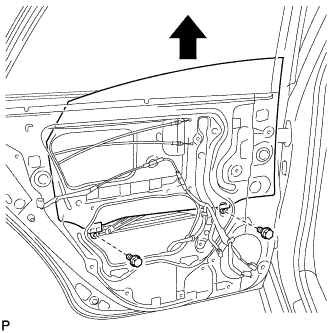

5. Remove the 2 bolts and rear door glass sub-assembly as shown in the illustration.


   NOTICE:

   1. After the bolts are removed, do not allow the door glass to fall.

   2. Do not damage the door glass.


1. Loosen the temporary bolt.


   Text in Illustration

   *1	Temporary Bolt

   NOTICE:

   Do not remove the temporary bolt. If the temporary bolt is removed, the rear door window regulator may fall and cause damage.

2. Remove the 5 bolts.


3. Remove the rear door window regulator assembly.


4. Remove the temporary bolt from the rear door window regulator assembly.


1. Using a T25 "TORX" driver, remove the 3 screws and the rear power window regulator motor assembly.
