POWER WINDOW REGULATOR MOTOR (for Rear Door) > INSTALLATION

for Preparation Click here

HINT:

1. Use the same procedure for the RH side and LH side.

2. The procedure listed below is for the LH side.


NOTICE:

The regulator arm must be below the intermediate position when installing the rear power window regulator motor assembly.

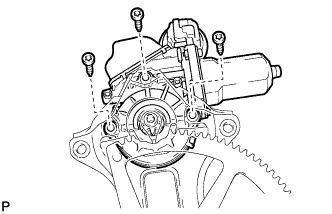

1. Using a T25 "TORX" driver, install the rear power window regulator motor assembly with the 3 screws.


   Torque:

   5.4 N*m{ 55 kgf*cm , 48 in.*lbf }

   HINT:

   A new rear window regulator uses self-tapping screws to thread new installation holes when the self-tapping screws are inserted.

1. Apply MP grease to the sliding parts of the rear door window regulator assembly.

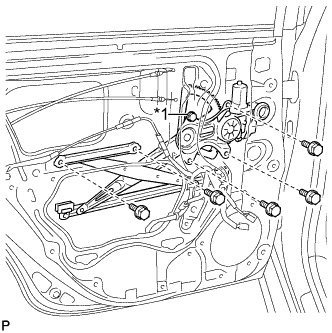

2. Install the temporary bolt to the rear door window regulator assembly.


3. Temporarily install rear door window regulator assembly.


   Text in Illustration

   *1	Temporary Bolt

4. Tighten the temporary bolt and 5 bolts.


   Torque:

   8.0 N*m{ 82 kgf*cm , 71 in.*lbf }

1. Connect the cable to the negative (-) battery terminal and the rear power window regulator motor connector.


2. Connect the power window regulator switch assembly and move the rear door glass sub-assembly so that the door glass bolts can be seen.


3. Disconnect the power window regulator switch assembly and rear power window regulator motor connector.



   1. w/ Navigation System for HDD:


      NOTICE:

      After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.

4. Disconnect the cable from the negative (-) battery terminal.


5. Insert the rear door glass sub-assembly into the rear door panel along the rear door glass run as shown in the illustration.


6. Install the rear door glass sub-assembly with the 2 bolts.


   Torque:

   8.0 N*m{ 82 kgf*cm , 71 in.*lbf }

7. Connect the cable to the negative (-) battery terminal.


   NOTICE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

1. Install the temporary screw to the rear door rear guide seal.


2. Temporarily install the rear door rear guide seal.


   Text in Illustration

   *1	Temporary Screw

3. Install the 2 screws.


4. Tighten the temporary screw to install the rear door rear guide seal.


1. Install the screw.


2. Install the rear door window guide sub-assembly with the bolt.


   Torque:

   8.0 N*m{ 82 kgf*cm , 71 in.*lbf }

1. Install the rear door glass run.


1. Apply butyl tape to the rear door panel.


2. Pass the rear door lock remote control cable, rear door inside locking cable and each connector through a new rear door service hole cover.


3. Attach the rear door service hole cover according to the reference points on the rear door panel.


   Text in Illustration

   *1	Reference Point

   NOTICE:

   Securely install the rear door service hole cover preventing wrinkles and air bubbles.

4. Connect the 2 connectors.


5. Engage the clamp.


1. Install the rear door trim bracket with the 2 screws.


1. Connect the rear door lock remote control cable assembly and rear door inside locking cable assembly to the rear door inside handle.


2. Engage the 2 claws and install the rear door inside handle sub-assembly to the rear door trim board sub-assembly.


1. for 8 Speakers:



   1. Connect the connector.


2. Engage the 8 clips and install the rear door trim board sub-assembly.


3. Install the 2 screws.


4. Remove the protective tape.


1. Install the rear door armrest cover.


1. Connect the connector.


2. Engage the 7 claws and 2 guides, and install the rear power window regulator switch assembly with rear door armrest base panel.


1. Engage the 6 claws, 2 clips and 3 guides, and install the assist grip cover.


1. Engage the 3 claws and install the rear door inside handle bezel plug.


1. Engage the 2 guides to install the rear No. 3 floor board.


1. Install the rear deck floor box.


1. Engage the 3 guides <A>.


2. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.
