REAR SEAT ASSEMBLY > INSTALLATION

for Preparation Click here



1. INSTALL REAR SEATBACK ASSEMBLY RH

  1. Place the rear seatback assembly RH in the cabin.

    NOTICE:
    Be careful not to damage the vehicle body.

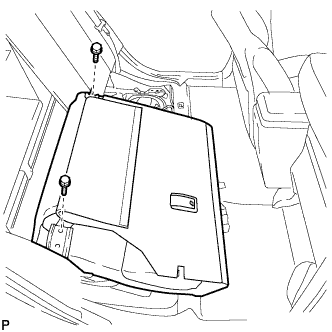

    B230017

  1. Install the rear seatback assembly RH with the 2 bolts.

    Torque:
    37 N*m{ 377 kgf*cm , 27 ft.*lbf }

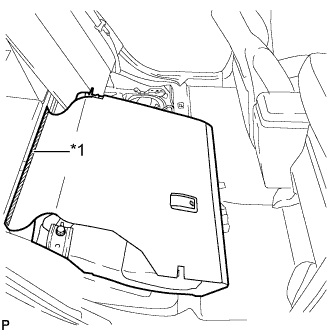

    B233147E01

  1. Engage the fastener.
    Text in Illustration
    *1
    		Fastener



2. INSTALL REAR SEATBACK ASSEMBLY LH

  1. Place the rear seatback assembly LH in the cabin.

    NOTICE:
    Be careful not to damage the vehicle body.

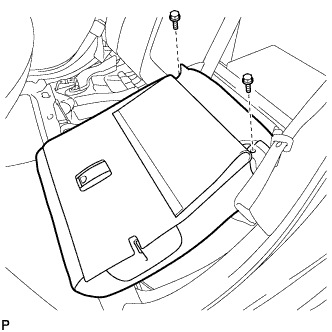

    B229998

  1. Install the rear seatback assembly LH with the 2 bolts.

    Torque:
    37 N*m{ 377 kgf*cm , 27 ft.*lbf }



    B233386E01

  1. Engage the fastener.
    Text in Illustration
    *1
    		Fastener



3. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY

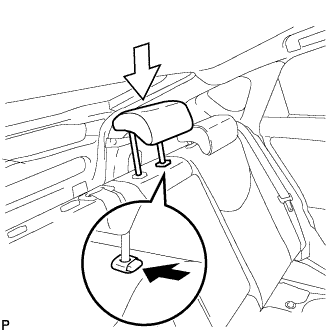

    B230016

  1. Install the rear seat center headrest assembly as shown in the illustration.



4. INSTALL REAR SEAT HEADREST ASSEMBLY RH


    B230013

  1. Install the rear seat headrest assembly RH as shown in the illustration.



5. INSTALL REAR SEAT HEADREST ASSEMBLY LH

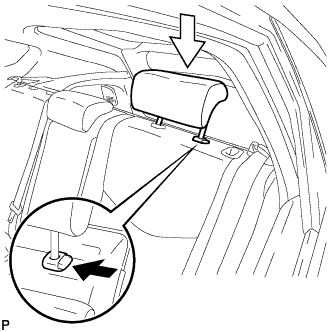

    B229995

  1. Install the rear seat headrest assembly LH as shown in the illustration.



6. CONNECT REAR CENTER SEAT BELT ASSEMBLY

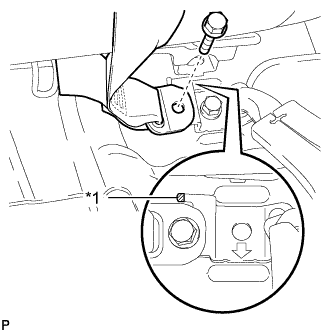

    B221513E01

  1. Connect the anchor part of the rear seat inner belt assembly.
    Text in Illustration
    *1
    		Protruding Part

    Torque:
    42 N*m{ 428 kgf*cm , 31 ft.*lbf }

    NOTICE:
    Do not allow the anchor part of the rear center seat belt assembly to overlap the protruding part of the rear seat inner belt assembly RH.



7. INSTALL REAR SIDE SEATBACK ASSEMBLY RH


    B230046

  1. Engage the 2 guides as shown in the illustration.



    B230044

  1. Install the rear side seatback assembly RH with the bolt.

    Torque:
    18 N*m{ 184 kgf*cm , 13 ft.*lbf }



8. INSTALL REAR SIDE SEATBACK ASSEMBLY LH

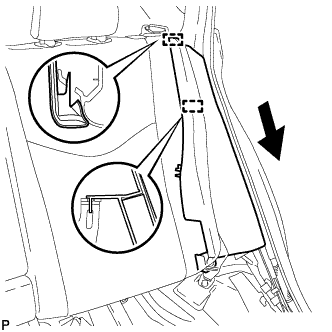

    B230043

  1. Engage the 2 guides as shown in the illustration.

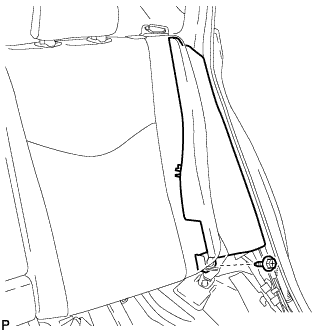

    B230041

  1. Install the rear side seatback assembly LH with the bolt.

    Torque:
    18 N*m{ 184 kgf*cm , 13 ft.*lbf }



9. INSTALL REAR SEAT CUSHION ASSEMBLY


    B229993E01

  1. Engage the 2 guides of the seat cushion to the seatback.
    Text in Illustration
    *1
    		100 mm (3.94 in.) or less
    *2
    		Guide
    *3
    		Hook

  1. Engage the 2 front hooks of the seat cushion to the vehicle body.

    NOTICE:
    When installing the seat cushion, make sure that the seat belt buckle is not under the seat cushion.

    HINT:
    Confirm that the seat cushion is firmly installed.
