COOLING FAN MOTOR > REMOVAL

for Preparation Click here



1. REMOVE RADIATOR ASSEMBLY

HINT:
(Click here)



2. REMOVE FAN

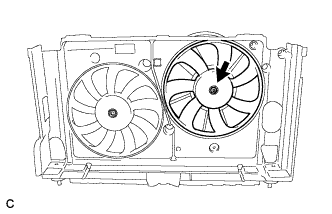

    A213421E01

  1. Remove the nut and fan.



3. REMOVE NO. 2 FAN

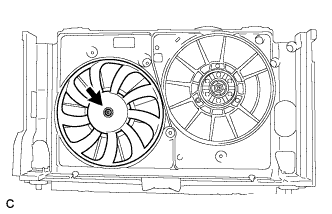

    A213422E01

  1. Remove the nut and No. 2 fan.



4. REMOVE NO. 2 COOLING FAN MOTOR

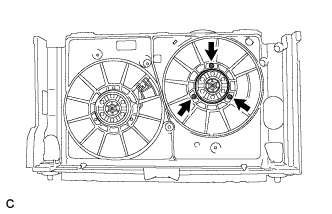

    A213423

  1. Remove the 3 screws and No. 2 cooling fan motor.



5. REMOVE COOLING FAN MOTOR


    A213424

  1. Disconnect the 5 clamps.

    NOTICE:
    Be careful not to damage the connector.

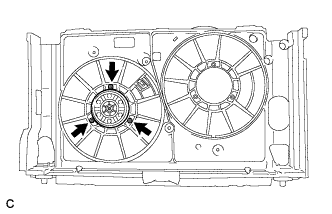

    A213425

  1. Remove the 3 screws and cooling fan motor.
