BRAKE PEDAL (for RHD) > REASSEMBLY

for Preparation Click here



1. INSTALL BRAKE PEDAL PAD


2. INSTALL BRAKE PEDAL BUSHING

  1. Apply lithium soap base glycol grease to 2 new brake pedal bushings.

  1. Install the 2 brake pedal bushings to the brake pedal sub-assembly.



3. INSTALL BRAKE PEDAL SHAFT COLLAR

  1. Install the brake pedal shaft collar to the brake pedal sub-assembly.



4. INSTALL BRAKE PEDAL SUB-ASSEMBLY

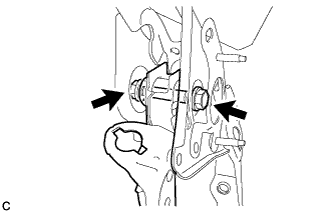

    C205661

  1. Install the brake pedal sub-assembly to the brake pedal support sub-assembly with the brake pedal shaft and nut.

    Torque:
    17 N*m{ 176 kgf*cm , 13 ft.*lbf }
