FRONT PASSENGER SIDE POWER WINDOW SWITCH > REMOVAL

for Preparation Click here



1. REMOVE ASSIST GRIP COVER

HINT:
Use the same procedure for the RH side and LH side (Click here).



2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

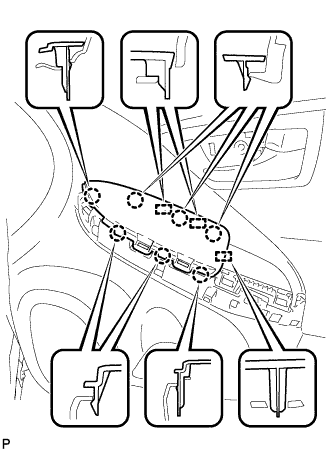

    B232008

  1. Disengage the 7 claws and 3 guides.

  1. Disconnect the connector and remove the power window regulator switch assembly with front door armrest base panel.



3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

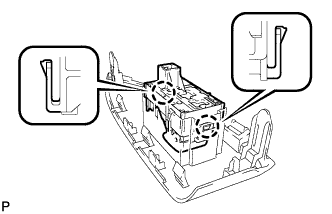

    B229115

  1. Disengage the 2 claws and remove the power window regulator switch assembly.
