DTC    C1522    Motor Circuit Malfunction

DTC    C1523    Motor Circuit Malfunction

DTC    C1524    Motor Circuit Malfunction

DTC    C1555    Motor Relay Welding Failure

for Preparation Click here


DESCRIPTION

The power steering ECU supplies the current to the power steering motor through the motor circuit.

DTC No.
DTC Detection Condition
Trouble Area
C1522
Motor current sensor malfunction
  1. Steering column assembly
  2. Power steering ECU
C1523
Excessively large current deviation
C1524
Short (or open) in motor circuit or abnormal voltage or current in motor circuit
C1555
Motor relay circuit malfunction

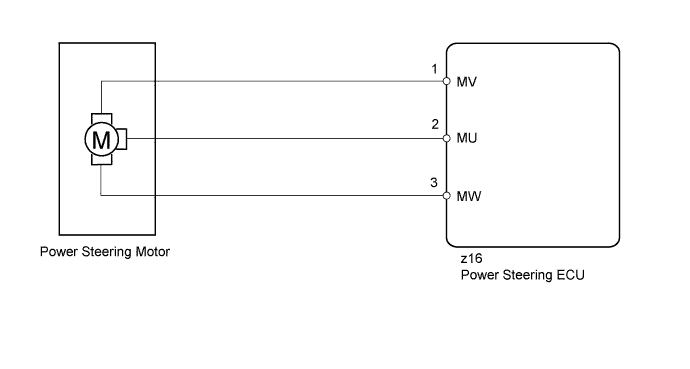

WIRING DIAGRAM


C140416E13


INSPECTION PROCEDURE

NOTICE:
If the steering column assembly or power steering ECU has been replaced, perform the rotation angle sensor initialization and torque sensor zero point calibration (Click here).

1.READ VALUE USING INTELLIGENT TESTER (MOTOR VOLTAGE)

  1. Turn the power switch off.

  1. Connect the intelligent tester to the DLC3.

  1. Turn the power switch on (READY).

  1. Turn the intelligent tester on.

  1. Enter the following menus: Chassis / EMPS / Data List.

  1. Select the items "Motor Terminal Volt(U)", "Motor Terminal Volt(V)" and "Motor Terminal Volt(W)" in the Data List and read the value displayed on the intelligent tester.

    EMPS
    Tester Display
    		Measurement Item/Range
    		Normal Condition
    		Diagnostic Note
    Motor Terminal Volt (U)
    		Motor terminal voltage (U phase)/
    Min.: 0 V
    Max.: 46.667 V
    		Value changes within 4 to 35 V range
    		Power switch on (READY) and steering wheel is turned
    Motor Terminal Volt (V)
    		Motor terminal voltage (V phase)/
    Min.: 0 V
    Max.: 46.667 V
    		Value changes within 4 to 35 V range
    		Power switch on (READY) and steering wheel is turned
    Motor Terminal Volt (W)
    		Motor terminal voltage (W phase)/
    Min.: 0 V
    Max.: 46.667 V
    		Value changes within 4 to 35 V range
    		Power switch on (READY) and steering wheel is turned

    Result:
    Result
    		Proceed to
    During steering operation, value changes within 4 to 35 V range
    		A
    During steering operation, voltage is not generated
    		B



B
REPLACE STEERING COLUMN ASSEMBLY (Click here)
A

REPLACE POWER STEERING ECU (Click here)
