PARKING BRAKE CABLE > INSTALLATION

for Preparation Click here



1. INSTALL NO. 2 PARKING BRAKE CABLE CLAMP


    C158972

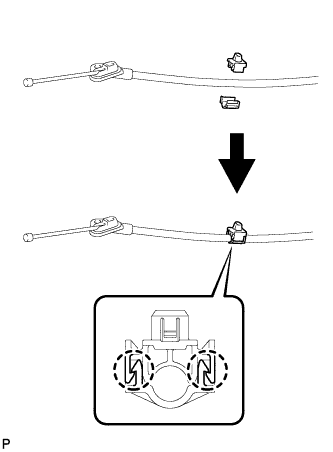

  1. Engage the 2 claws to install a new No. 2 parking brake cable clamp to the No. 3 parking brake cable assembly.

    HINT:
    Even if a one-peace type No. 2 parking brake cable clamp was originally installed, make sure to install a separate type No. 2 parking brake cable clamp.



2. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY

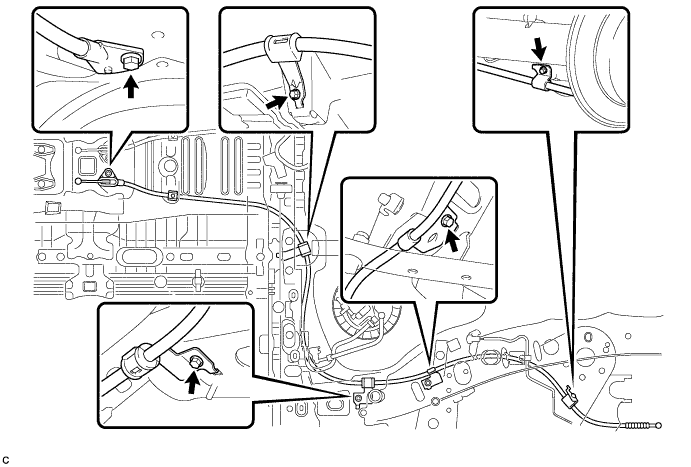

  1. Install the No. 3 parking brake cable assembly with the 5 bolts.


    C206658

    Torque:
    6.0 N*m{ 61 kgf*cm , 53 in.*lbf }



    C155547E04

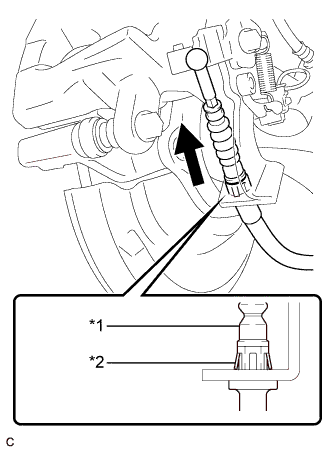

  1. Install the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly.
    Text in Illustration
    *1
    		No. 3 Parking Brake Cable Assembly
    *2
    		Clip

    HINT:
    Be sure to engage the No. 3 parking brake cable assembly clip onto the rear disc brake cylinder assembly as shown in the illustration.



    C155545E02

  1. Connect the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly.



    C206657

  1. Engage the clamp to install the No. 2 parking brake cable clamp.



3. INSTALL REAR FLOOR SIDE MEMBER COVER LH


    C207250

  1. Install the rear floor side member cover LH with the nut and 2 bolts.



4. INSTALL FRONT NO. 2 FLOOR HEAT INSULATOR


    C206656

  1. Install the front No. 2 floor heat insulator with the 3 nuts.

    Torque:
    5.5 N*m{ 56 kgf*cm , 49 in.*lbf }



5. INSTALL FRONT EXHAUST PIPE ASSEMBLY

HINT:
Refer to the instructions for Installation of the front exhaust pipe assembly (Click here).



6. INSTALL NO. 1 PARKING BRAKE PULL ROD SUB-ASSEMBLY


    C206645

  1. Connect the No. 3 parking brake cable assembly to the No. 1 parking brake pull rod sub-assembly as shown in the illustration.

  1. Connect the No. 2 parking brake cable assembly to the No. 1 parking brake pull rod sub-assembly.

    HINT:
    Perform the same procedure as for the No. 3 parking brake cable assembly.



7. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY (for LHD)

  1. Pass the No. 1 parking brake cable assembly through the parking brake pedal assembly.



    C206654

  1. Install the clip to the No. 1 parking brake cable assembly.



    C206653

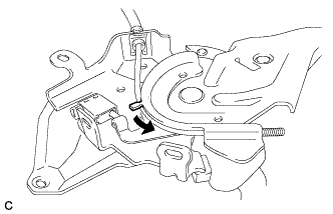

  1. Bend the parking brake pedal claw.



    C206659

  1. Temporarily install the adjusting nut.



8. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY (for RHD)

  1. Pass the No. 1 parking brake cable assembly through the parking brake pedal assembly.



    C206670

  1. Install the clip to the No. 1 parking brake cable assembly.



    C206669

  1. Bend the parking brake pedal claw.



    C206667

  1. Temporarily install the adjusting nut.



9. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY (for LHD)

HINT:
Refer to the instructions for Installation of the parking brake control pedal assembly (Click here).



10. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY (for RHD)

HINT:
Refer to the instructions for Installation of the parking brake control pedal assembly (Click here).



11. INSTALL REAR WHEEL

Torque:
103 N*m{ 1050 kgf*cm , 76 ft.*lbf }
