PARKING BRAKE PEDAL (for LHD) > DISASSEMBLY

for Preparation Click here



1. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY


    C206659

  1. Remove the adjusting nut.

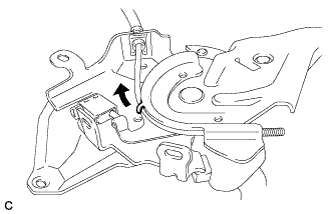

    C206652

  1. Pull up the parking brake pedal claw.



    C206654

  1. Remove the clip from the No. 1 parking brake cable assembly.

  1. Remove the No. 1 parking brake cable assembly from the parking brake pedal assembly.



2. REMOVE PARKING BRAKE SWITCH ASSEMBLY


    C206651

  1. Remove the screw and parking brake switch assembly from the parking brake control pedal assembly.



3. REMOVE PARKING PEDAL PAD

  1. Remove the parking pedal pad from the parking brake pedal assembly.
