ROOF HEADLINING > INSTALLATION

for Preparation Click here

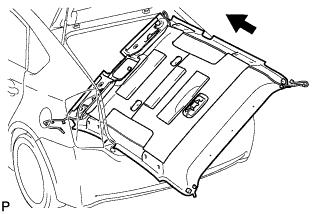

1. INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)


    B227858

  1. Put the roof headlining assembly into the vehicle through the back door.

    NOTICE:
    Do not damage the roof headlining assembly or body interior.

  1. Install the 5 clips.

  1. Connect the 2 connectors to the connector holder.

  1. Engage the 4 clamps to the front pillar LH.

  1. Connect the connector and engage the clamp to the rear pillar RH.

  1. Connect the connector and engage the 3 clamps to the front pillar RH.

  1. w/ EC Mirror:

    1. Connect the inner rear view mirror connector and engage the 2 clamps.



  1. w/ Rain sensor:



    1. Connect the rain sensor connector and engage the 2 clamps.


      B227817E01


      Text in Illustration
      *1
      		w/ EC Mirror
      		*2
      		w/ Rain Sensor



2. INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)


    B227857

  1. Put the roof headlining assembly into the vehicle through the back door.

    NOTICE:
    Do not damage the roof headlining assembly or body interior.



  1. Engage the 6 fasteners.


    B227814

  1. Install the 3 clips.

  1. Connect the 2 connectors to the connector holder.

  1. Engage the 4 clamps to the front pillar LH.

  1. Connect the connector and engage the clamp to the rear pillar RH.

  1. Connect the connector and engage the 3 clamps to the front pillar RH.

  1. w/ EC Mirror:

    1. Connect the inner rear view mirror connector and engage the 2 clamps.



  1. w/ Rain sensor:



    1. Connect the rain sensor connector and engage the 2 clamps.


      B227813E01


      Text in Illustration
      *1
      		w/ EC Mirror
      		*2
      		w/ Rain Sensor

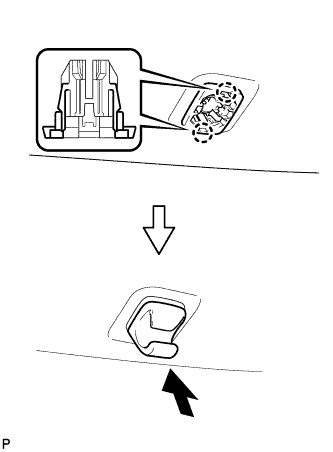

3. INSTALL VISOR HOLDER


    B211698

  1. Engage the 2 claws.

  1. Push in the visor holder as shown in the illustration.

    HINT:
    Use the same procedure for the other visor holder.



4. INSTALL VISOR ASSEMBLY LH


    B227811

  1. Engage the 2 clips to install the visor assembly LH.

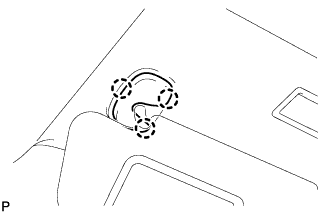

5. INSTALL VISOR BRACKET COVER LH


    B227809

  1. Engage the 3 claws to install the visor bracket cover LH.



6. INSTALL VISOR ASSEMBLY RH

HINT:
Use the same procedure described for the LH side.



7. INSTALL VISOR BRACKET COVER RH

HINT:
Use the same procedure described for the LH side.

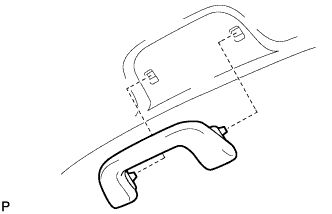

8. INSTALL FRONT ASSIST GRIP ASSEMBLY


    B203057

  1. Assemble the front assist grip assembly as shown in the illustration.



    B229265

  1. Install the front assist grip assembly.

    HINT:
    Use the same procedure for the other front assist grip.

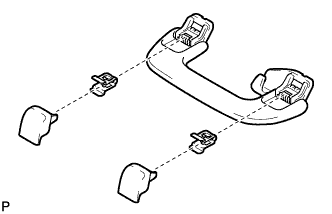

9. INSTALL REAR ASSIST GRIP ASSEMBLY


    B131970

  1. Assemble the rear assist grip assembly as shown in the illustration.



    B229264

  1. Install the rear assist grip assembly.

    HINT:
    Use the same procedure for the other rear assist grip.

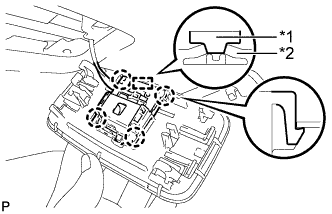

10. INSTALL NO. 1 ROOM LIGHT ASSEMBLY


    E189690E01

  1. Align the switch parts shown in the illustration and engage the 4 claws to install the room light switch base to the No. 1 room light assembly.
    Text in Illustration
    *1
    		Switch Part of Room Light Switch Base
    *2
    		Switch Part of No. 1 Room Light Assembly



    E189688

  1. Engage the 4 claws and install the No. 1 room light assembly.



    E189686

  1. Engage the 2 claws and 2 guides to install the 2 No. 1 room light covers.



    E189684

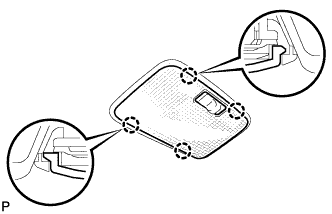

  1. Engage the 4 claws to install the No. 1 room light lens.



11. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)

  1. Connect the connector.



    E189674

  1. Engage the 2 guides and 4 clips, and install the map light assembly.



12. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)

  1. Connect the connector.

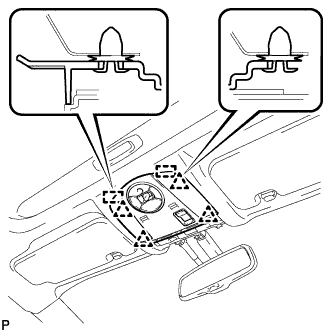

    E189672

  1. Engage the 2 guides and 4 clips, and install the map light assembly.



13. INSTALL ROOF TOP MOULDING


    B227833

  1. Engage the 3 claws and 2 clips to install the roof top moulding.



14. INSTALL INNER REAR VIEW MIRROR COVER (w/ EC Mirror)


    B229500

  1. Engage the 6 claws and install the inner rear view mirror cover.



    B229508

  1. Engage the 2 claws and install the inner rear view mirror cover as shown in the illustration.



15. INSTALL RAIN SENSOR COVER (w/ Rain Sensor)


    E190075

  1. Engage the 2 claws.

  1. Install the rain sensor cover as shown in the illustration.



16. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH


  1. Engage the 9 clips to install the roof side inner garnish assembly LH.


    B227806



17. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

  1. Connect the connector.

  1. Engage the 7 claws and 2 clips.



  1. Install the deck trim side panel assembly LH with the screw.


    B227804



18. INSTALL TONNEAU COVER HOLDER CAP (for LH Side)


    B227801

  1. Engage the claw to install the tonneau cover holder cap.



19. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)


    B227798

  1. Engage the 2 guides.

  1. Install the 2 luggage hold belt striker assemblies with the 2 bolts.



20. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH

HINT:
Use the same procedure described for the LH side.



21. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

  1. Engage the 7 claws and 2 clips.



  1. Install the deck trim side panel assembly RH with the screw.


    B227803



22. INSTALL TONNEAU COVER HOLDER CAP (for RH Side)

HINT:
Use the same procedure described for the LH side.



23. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)

HINT:
Use the same procedure described for the LH side.



24. INSTALL REAR DECK TRIM COVER


    B227796

  1. Engage the 4 claws and 4 guides to install the rear deck trim cover.



25. INSTALL DECK TRIM SERVICE HOLE COVER


    B227795

  1. Engage the 3 guides.

  1. Engage the 2 claws to install the deck trim service hole cover.



26. INSTALL REAR NO. 1 FLOOR BOARD


    B227794

  1. Engage the 2 claws and 2 clips.

  1. Install the rear No. 1 floor board with the bolt.



27. INSTALL REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY


    B227793

  1. Engage the claw and 2 clips to install the rear No. 2 floor board sub-assembly.



28. INSTALL REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY


    B227792

  1. Engage the 2 claws and 2 clips to install the rear No. 1 floor board sub-assembly.



29. INSTALL DECK FLOOR BOX LH


    B227790

  1. Engage the 2 guides.

  1. Install the deck floor box LH with the clip.



30. INSTALL REAR NO. 4 FLOOR BOARD


    B227789

  1. Engage the guide to install the rear No. 4 floor board.



31. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

  1. Install the tonneau cover assembly.



32. INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

  1. Install the upper instrument panel assembly (Click here).



33. INSTALL REAR SIDE SEATBACK ASSEMBLY LH


    B230043

  1. Engage the 2 guides as shown in the illustration.



    B230041

  1. Install the rear side seatback assembly LH with the bolt.

    Torque:
    18 N*m{ 184 kgf*cm , 13 ft.*lbf }



34. INSTALL REAR SIDE SEATBACK ASSEMBLY RH


    B230046

  1. Engage the 2 guides as shown in the illustration.



    B230044

  1. Install the rear side seatback assembly RH with the bolt.

    Torque:
    18 N*m{ 184 kgf*cm , 13 ft.*lbf }



35. INSTALL REAR SEAT CUSHION ASSEMBLY


    B229993E01

  1. Engage the 2 guides of the seat cushion to the seatback.
    Text in Illustration
    *1
    		100 mm (3.94 in.) or less
    *2
    		Guide
    *3
    		Hook

  1. Engage the 2 front hooks of the seat cushion to the vehicle body.

    NOTICE:
    When installing the seat cushion, make sure that the seat belt buckle is not under the seat cushion.

    HINT:
    Confirm that the seat cushion is firmly installed.



36. INSTALL CENTER PILLAR GARNISH LH

  1. Pass the floor anchor of the front seat outer seat belt assembly LH through the center pillar garnish LH.



    B227786

  1. Engage the clip.

  1. Install the center pillar garnish LH with the screw.



37. INSTALL CENTER PILLAR LOWER GARNISH LH


    B227782

  1. Engage the 2 claws and 2 clips to install the center pillar lower garnish LH.



38. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH


    B221489

  1. Install the floor end of the front seat outer belt assembly with the bolt.

    Torque:
    42 N*m{ 428 kgf*cm , 31 ft.*lbf }

  1. Check if the ELR locks.

    NOTICE:
    The check should be performed with the outer belt assembly installed.


    1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.



39. INSTALL LAP BELT OUTER ANCHOR COVER (for LH Side)


    B221487

  1. Engage the 3 claws to install the lap belt outer anchor cover.

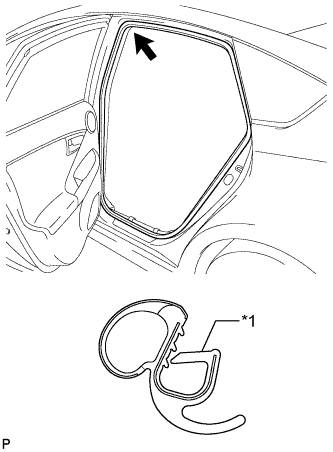

40. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH


    B227772E01

  1. Align the alignment mark (Red) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip LH.
    Text in Illustration
    *1
    		Alignment Mark (Red)

    NOTICE:
    After installation, check that the corners fit correctly.



41. INSTALL REAR DOOR SCUFF PLATE LH


    B227766

  1. Engage the 7 claws to install the rear door scuff plate LH.



42. INSTALL FRONT PILLAR GARNISH LH


    B227780E01

  1. Remove the protective cover.
    Text in Illustration
    *1
    		Adhesive Tape
    *2
    		Protective Cover
    *3
    		Curtain Shield Airbag Assembly



    B257020E01

  1. Make sure that the front pillar garnish clip is not damaged.
    Text in Illustration
    *1
    		Front Pillar Garnish Clip
    *2
    		Protective Tape

    NOTICE:
    1. If there is any damage, replace the garnish clip with a new one.
    2. When a garnish clip is being replaced, make sure to install it in the direction shown in the illustration.

  1. Engage the claw to direction indicated by the arrow (1).

  1. Engage the 3 guides to direction indicated by the arrow (2).

  1. Turn the end of the front pillar garnish clip 90° with needle-nosed pliers and install it to the front pillar garnish LH.

    HINT:
    Tape the needle-nosed pliers tip before use.



    B257025

  1. Engage 2 clips to install the front pillar garnish LH.



43. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH


    B227774E01

  1. Align the alignment mark (Yellow) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip LH.
    Text in Illustration
    *1
    		Alignment Mark (Yellow)

    NOTICE:
    After installation, check that the corners fit correctly.



44. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH


    B227764

  1. Engage the 2 clips.

  1. Install the cowl side trim board LH with the clip.



45. INSTALL FRONT DOOR SCUFF PLATE LH


    B227761

  1. Engage the 10 claws to install the front door scuff plate LH.



46. INSTALL CENTER PILLAR GARNISH RH

HINT:
Use the same procedure described for the LH side.



47. INSTALL CENTER PILLAR LOWER GARNISH RH

HINT:
Use the same procedure described for the LH side.



48. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

HINT:
Use the same procedure described for the LH side.



49. INSTALL LAP BELT OUTER ANCHOR COVER (for RH Side)

HINT:
Use the same procedure described for the LH side.

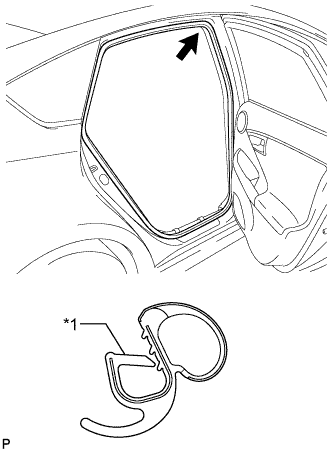

50. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH


    B227771E01

  1. Align the alignment mark (Blue) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip LH.
    Text in Illustration
    *1
    		Alignment Mark (Blue)

    NOTICE:
    After installation, check that the corners fit correctly.



51. INSTALL REAR DOOR SCUFF PLATE RH

HINT:
Use the same procedure described for the LH side.



52. INSTALL FRONT PILLAR GARNISH RH

HINT:
Use the same procedure described for the LH side.



53. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH


    B227773E01

  1. Align the alignment mark (White) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip RH.
    Text in Illustration
    *1
    		Alignment Mark (White)

    NOTICE:
    After installation, check that the corners fit correctly.



54. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

HINT:
Use the same procedure described for the LH side.



55. INSTALL FRONT DOOR SCUFF PLATE RH

HINT:
Use the same procedure described for the LH side.



56. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



57. INSTALL REAR NO. 3 FLOOR BOARD


    B227791

  1. Engage the 2 guides to install the rear No. 3 floor board.



58. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



59. INSTALL REAR NO. 2 FLOOR BOARD


    B227788E01

  1. Engage the 3 guides <A>.

  1. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.
