HYBRID VEHICLE TRANSAXLE > REMOVAL

for Preparation Click here



1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

HINT:
(Click here)



2. REMOVE FRONT CROSS MEMBER SUB-ASSEMBLY


    A213041

  1. Remove the bolt and nut.

  1. Remove the front engine mounting insulator from the front engine mounting bracket.



3. REMOVE FRONT ENGINE MOUNTING INSULATOR


    A217722

  1. Remove the 2 bolts and front engine mounting insulator.



4. REMOVE REAR ENGINE MOUNTING INSULATOR


    A213044

  1. Remove the through bolt, and separate the rear engine mounting insulator.

    HINT:
    Perform this procedure only when replacement of the engine mounting insulator is necessary.



5. REMOVE RADIATOR PIPE


    A213045

  1. Separate the No. 3 radiator hose from the cylinder head.

  1. Remove the 2 bolts and radiator pipe.



6. DISCONNECT WIRE HARNESS


  1. Remove the 2 bolts and disconnect the 6 connectors and 12 wire harness clamps.


    C209863



7. REMOVE STARTER HOLE INSULATOR


    C209282

  1. Remove the 2 bolts and starter hole insulator.



8. REMOVE FLYWHEEL HOUSING SIDE COVER


    C209283

  1. Remove the flywheel housing side cover.



9. REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY

  1. Using wood blocks or equivalent, set an engine lifter to the hybrid vehicle transaxle assembly.

    NOTICE:
    Using a rope, wooden blocks or equivalent, secure the hybrid vehicle transaxle assembly to the engine lifter.



    C209286

  1. Remove the 7 bolts and hybrid vehicle transaxle assembly.

    NOTICE:
    To avoid damage to the knock pin, do not pry the connecting portion of the hybrid transaxle and the engine.

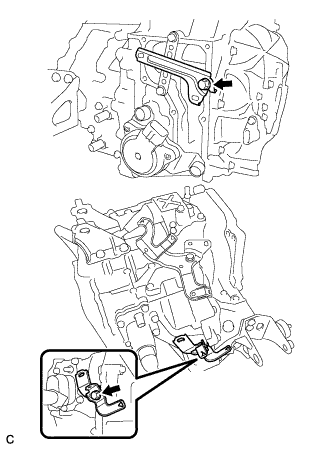

10. REMOVE WIRE HARNESS CLAMP BRACKET


    C209285

  1. Remove the 2 bolts and 2 wire harness clamp brackets.



11. REMOVE MOTOR CABLE BRACKET


    C210345

  1. Remove the bolt and motor cable bracket.

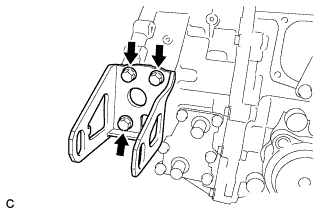

12. REMOVE FRONT ENGINE MOUNTING BRACKET


    C209287

  1. Remove the 3 bolts and front engine mounting bracket.

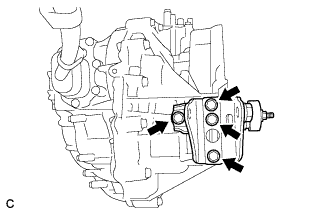

13. REMOVE REAR ENGINE MOUNTING BRACKET


    C209288

  1. Remove the 4 bolts and rear engine mounting bracket.

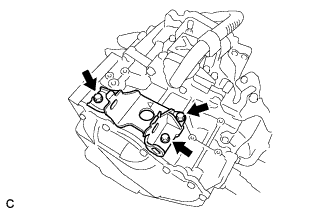

14. REMOVE ENGINE MOUNTING BRACKET LH


    C209289

  1. Remove the 3 bolts and engine mounting bracket LH.
