AIRBAG CUT-OFF SWITCH > INSPECTION

for Preparation Click here



1. INSPECT AIRBAG CUT OFF SWITCH

  1. Turn the power switch off.

  1. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.



    C145459E09

  1. Disconnect the connector from the airbag cut off switch.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Switch Condition
    		Specified Condition
    L117-2 (PMC+) - L117-1 (PMC-)
    		Cut off switch in ON
    		360 to 440 Ω
    L117-2 (PMC+) - L117-1 (PMC-)
    		Cut off switch in OFF
    		90 to 110 Ω

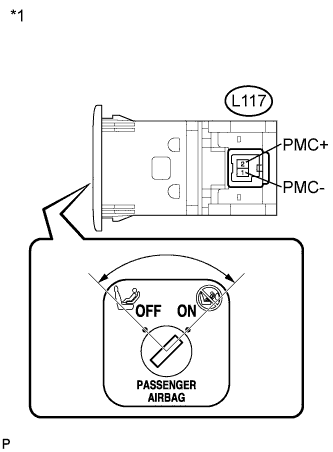

    Text in Illustration
    *1
    		Component without harness connected
    (Airbag Cut Off Switch)
    If the result is not as specified, replace the airbag cut off switch.
