DOOR COURTESY LIGHT > INSPECTION

for Preparation Click here



1. INSPECT COURTESY LIGHT ASSEMBLY

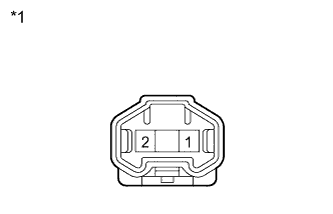

    E136359E11

  1. Connect a positive (+) lead from the battery to terminal 1 and a negative (-) lead to terminal 2.

  1. Check that the courtesy light comes on.

    OK:
    Courtesy light comes on.

    Text in Illustration
    *1
    		Component without harness connected
    (Courtesy Light Assembly)
    If the result is not as specified, replace the bulb or courtesy light assembly.
