FRONT SEATBACK HEATER (for Power Seat) > INSTALLATION

for Preparation Click here

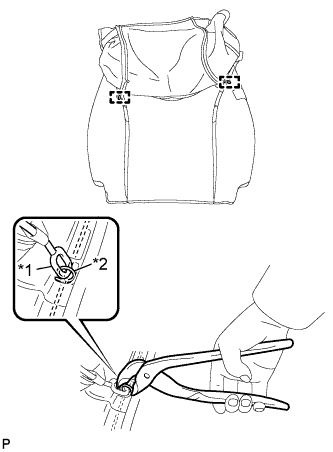

1. Using hog ring pliers, connect the fastening rubber to the separate type front seatback pad with 2 new hog rings.


   Text in Illustration

   *1	Fastening Rubber
   *2	Hog Ring

   NOTICE:

   1. Be careful not to damage the cover.

   2. When installing the hog rings, take care to minimize wrinkles as much as possible.

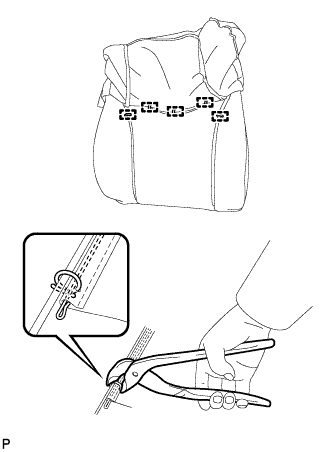

2. Using hog ring pliers, install the front seatback heater assembly (separate type front seatback cover) to the separate type front seatback pad with 5 new hog rings


   NOTICE:

   1. Be careful not to damage the cover.

   2. When installing the hog rings, take care to minimize wrinkles as much as possible.


1. Temporarily install the separate type front seatback cover with pad to the front seatback spring sub-assembly.


2. Engage the 4 claws and install the 2 front seat headrest supports.

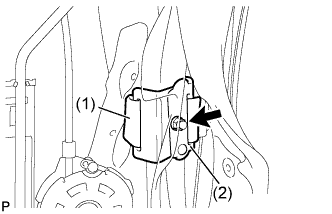

3. Install the separate type front seatback cover bracket with the nut.


   Torque:

   5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

   NOTICE:

   1. For vehicles with side airbags, the side airbags may not be activated normally unless the front seatback cover is securely installed.

   2. Check that the strap is not twisted after installing the bracket.

   3. Install the bracket securely.


4. Engage the 2 hooks.

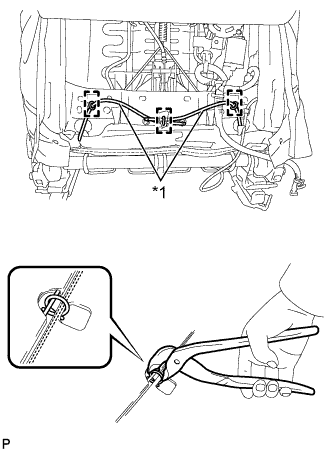

5. Using hog ring pliers, install the fastening rubber to the front seatback spring with 3 new hog rings.


   Text in Illustration

   *1	Fastening Rubber

   NOTICE:

   1. Be careful not to damage the cover.

   2. When installing the hog rings, take care to minimize wrinkles as much as possible.

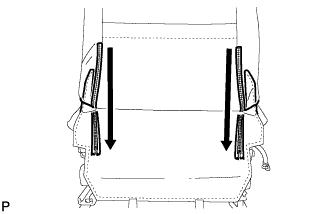

6. Close the 2 fasteners.

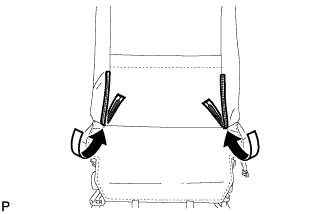

7. Push in the lower part of 2 fasteners to the separate type front seatback cover as shown in the illustration.

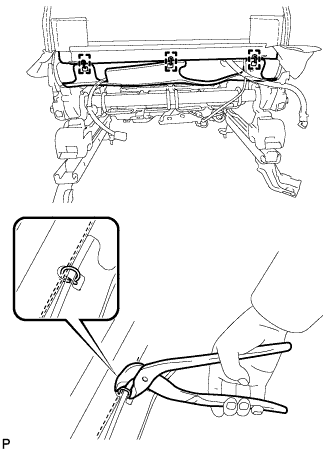

8. Using hog ring pliers, install 3 new hog rings.


   NOTICE:

   1. Be careful not to damage the cover.

   2. When installing the hog rings, take care to minimize wrinkles as much as possible.

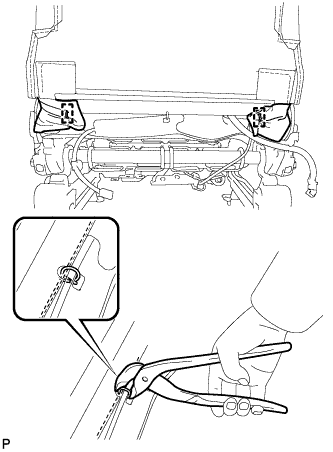

9. Using hog ring pliers, install 2 new hog rings.


   NOTICE:

   1. Be careful not to damage the cover.

   2. When installing the hog rings, take care to minimize wrinkles as much as possible.
