BACK DOOR SUPPORT > DISPOSAL

for Preparation Click here



1. DISPOSE OF BACK DOOR STAY ASSEMBLY

  1. Secure the back door stay assembly horizontally in a vise with the piston rod pulled out.



    B127037E06

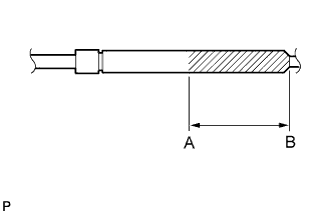

  1. Wear safety glasses. Use a metal saw to slowly cut a groove between A and B shown in the illustration to release the gas.
    Area
    		Measurement
    A-B
    		50 mm (1.97 in.)

    NOTICE:
    Although the gas inside the back door stay assembly is colorless, odorless and harmless, metal debris may scatter. Therefore, cover the back door stay assembly with a piece of cloth or other material.
