PURGE VALVE > REMOVAL

for Preparation Click here



1. REMOVE NO. 2 CYLINDER HEAD COVER


    A213020

  1. Remove the 3 clips and No. 2 cylinder head cover.

    NOTICE:
    1. Attempting to disengage both front and rear clips at the same time may cause the cover to break.
    2. Pull the cover straight up to remove. Attempting to pull the cover forward may cause it to break.

    NOTICE:
    Attempting to disengage both front and rear clips at the same time may cause the cover to break.



2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY


    A212311

  1. Disconnect the mass air flow meter connector.



    A212312E01

  1. Release the 2 clamps.

  1. Loosen the hose clamp and remove the air cleaner cap.



3. REMOVE INLET AIR CLEANER ASSEMBLY


    A212313

  1. Separate the hose from the hose clamp.

  1. Separate the wire harness clamp from the inlet air cleaner assembly.

  1. Remove the 3 bolts and inlet air cleaner assembly.



4. REMOVE AIR CLEANER CASE

  1. Remove the air cleaner filter element.



    A212314

  1. Separate the hose from the 3 hose clamps.

  1. Remove the 3 bolts and air cleaner case.



5. REMOVE VACUUM SWITCHING VALVE ASSEMBLY

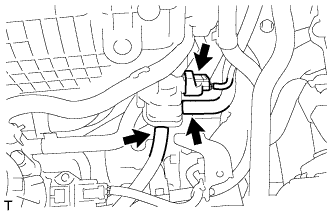

    A212673

  1. Disconnect the connector and 2 fuel vapor feed hoses.

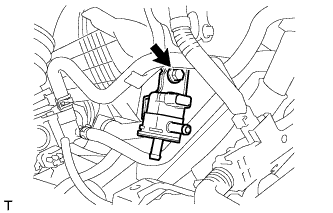

    A212674

  1. Remove the bolt and vacuum switching valve assembly.
