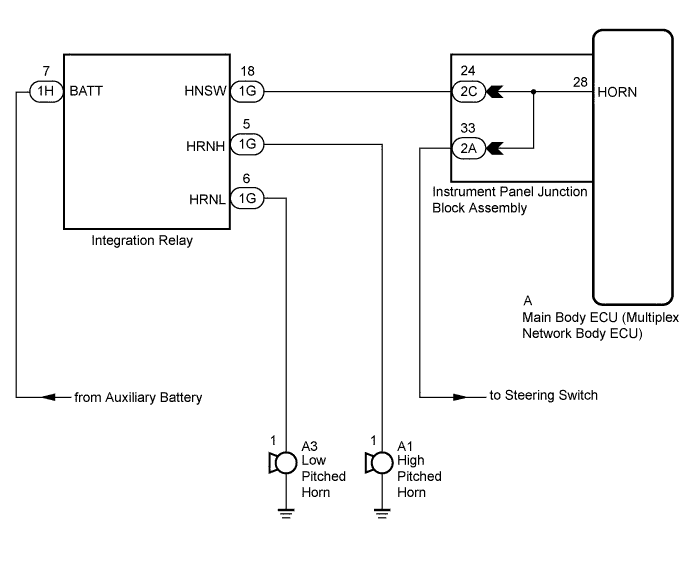

THEFT DETERRENT SYSTEM > Horn Circuit |
1.INSPECT HORNS |
Press the horn switch and check if the horns sound.
Result | Proceed to |
Horns sound | A |
Horns do not sound | B |
|
| ||||
A | |
![]() |
2.PERFORM ACTIVE TEST USING INTELLIGENT TESTER |
Connect the intelligent tester to the DLC3.
Turn the power switch on (IG).
Turn the intelligent tester on.
Select the item below in the Active Test and then check that the horns operate.
Tester Display | Test Part | Control Range | Diagnostic Note |
Vehicle Horn | Vehicle horns | ON / OFF | - |
Result | Proceed to |
The vehicle horns do not sound and stop correctly when operated through the intelligent tester | A |
The vehicle horns sound and stop correctly when operated through the intelligent tester | B |
|
| ||||
A | |
![]() |
3.INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
Disconnect the 2C instrument panel junction block assembly and A main body ECU (multiplex network body ECU) connectors.
Measure the resistance according to the value(s) in the table below.
Tester Connection | Condition | Specified Condition |
2C-24 - A-28 (HORN) | Always | Below 1 Ω |

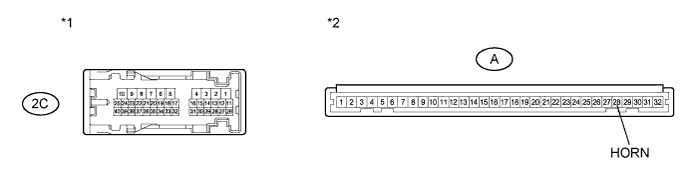

*1 | Component without harness connected (Instrument Panel Junction Block Assembly) | *2 | Front view of wire harness connector (to Main Body ECU (Multiplex Network Body ECU)) |
|
| ||||
OK | ||
![]() | ||
|
