REAR DOOR WINDOW FRAME MOULDING > INSTALLATION

for Preparation Click here

HINT:

When installing the rear door front window frame moulding, heat the vehicle body and rear door front window frame moulding using a heat light.

NOTICE:

Do not heat the vehicle body or rear door front window frame moulding excessively.

1. Clean the vehicle body surface.



   1. Using a heat light, heat the vehicle body surface.


   2. Remove the double-sided tape from the vehicle body.


   3. Wipe off any tape adhesive residue with cleaner.


2. Clean the rear door front window frame moulding (if reusing the rear door front window frame moulding).



   1. Using a heat light, heat the rear door front window frame moulding.


   2. Remove the double-sided tape from the rear door front window frame moulding.


   3. Wipe off any tape adhesive residue with cleaner.






   4. Apply new double-sided tape to the rear door front window frame moulding.


      Text in Illustration

      *1	Double-sided Tape (A)
      *2	Double-sided Tape (B)
      *3	Double-sided Tape (C)

      Item	Dimension
      A	0.8 mm (0.0315 in.)
      B	1.2 mm (0.0472 in.)
      C	5.0 mm (0.197 in.)
      D	13.0 mm (0.512 in.)
      E	35.0 mm (1.37 in.)
      F	365.0 mm (1.20 ft.)
      G	410.0 mm (1.35 ft.)

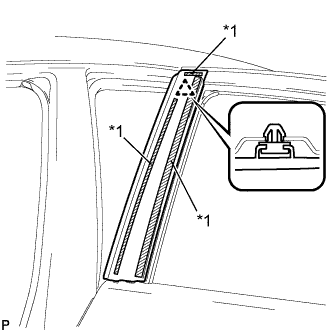

3. Install the rear door front window frame moulding.


   Text in Illustration

   *1	Double-sided Tape




   1. Using a heat light, heat the vehicle body and rear door front window frame moulding.


   2. Remove the release paper from the face of the rear door front window frame moulding.


      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

   3. Install the rear door front window frame moulding with the clip.


1. Engage the 7 claws to install the rear door belt moulding assembly.


1. Connect the cable to the negative (-) battery terminal and the rear power window regulator motor connector.


2. Connect the power window regulator switch assembly and move the rear door glass sub-assembly so that the door glass bolts can be seen.


3. Disconnect the power window regulator switch assembly and rear power window regulator motor connector.



   1. w/ Navigation System for HDD:


      NOTICE:

      After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.

4. Disconnect the cable from the negative (-) battery terminal.


5. Insert the rear door glass sub-assembly into the rear door panel along the rear door glass run as shown in the illustration.


6. Install the rear door glass sub-assembly with the 2 bolts.


   Torque:

   8.0 N*m{ 82 kgf*cm , 71 in.*lbf }

7. Connect the cable to the negative (-) battery terminal.


   NOTICE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

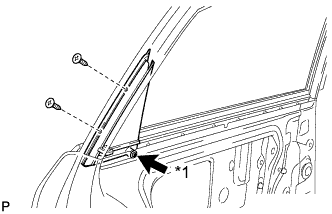

1. Install the temporary screw to the rear door rear guide seal.


2. Temporarily install the rear door rear guide seal.


   Text in Illustration

   *1	Temporary Screw

3. Install the 2 screws.


4. Tighten the temporary screw to install the rear door rear guide seal.

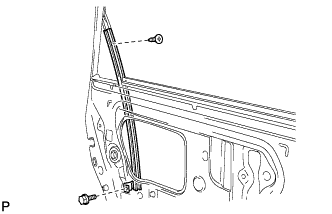

1. Install the screw.


2. Install the rear door window guide sub-assembly with the bolt.


   Torque:

   8.0 N*m{ 82 kgf*cm , 71 in.*lbf }

1. Install the rear door glass run.


1. Apply butyl tape to the rear door panel.


2. Pass the rear door lock remote control cable, rear door inside locking cable and each connector through a new rear door service hole cover.

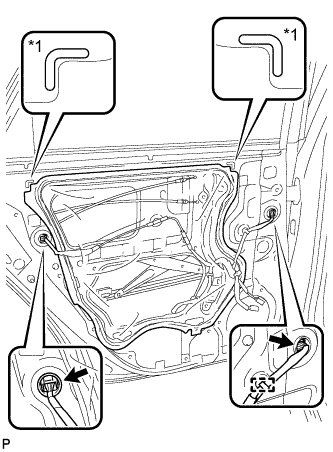

3. Attach the rear door service hole cover according to the reference points on the rear door panel.


   Text in Illustration

   *1	Reference Point

   NOTICE:

   Securely install the rear door service hole cover preventing wrinkles and air bubbles.

4. Connect the 2 connectors.


5. Engage the clamp.

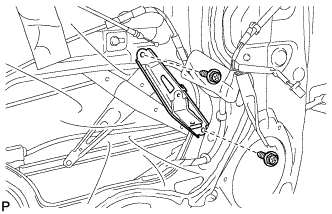

1. Install the rear door trim bracket with the 2 screws.

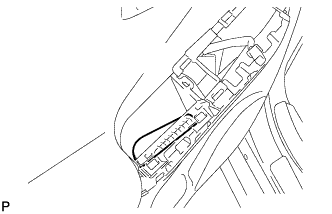

1. Connect the rear door lock remote control cable assembly and rear door inside locking cable assembly to the rear door inside handle.


2. Engage the 2 claws and install the rear door inside handle sub-assembly to the rear door trim board sub-assembly.


1. for 8 Speakers:



   1. Connect the connector.

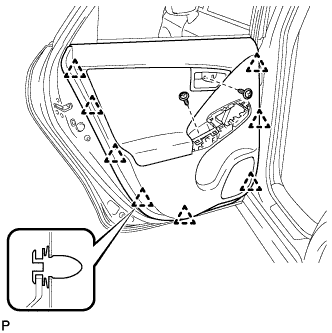

2. Engage the 8 clips and install the rear door trim board sub-assembly.


3. Install the 2 screws.


4. Remove the protective tape.


1. Install the rear door armrest cover.


1. Connect the connector.

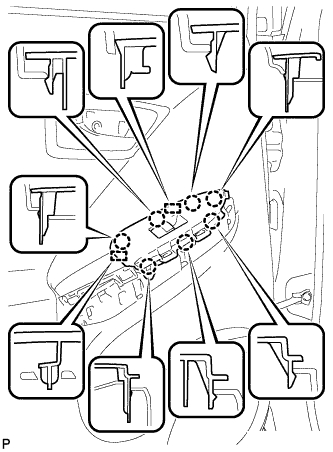

2. Engage the 7 claws and 2 guides, and install the rear power window regulator switch assembly with rear door armrest base panel.


1. Engage the 6 claws, 2 clips and 3 guides, and install the assist grip cover.


1. Engage the 3 claws and install the rear door inside handle bezel plug.


1. Engage the 2 guides to install the rear No. 3 floor board.


1. Install the rear deck floor box.


1. Engage the 3 guides <A>.


2. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.
