FRONT DOOR WINDOW FRAME MOULDING > REMOVAL

for Preparation Click here

1. Disengage the 2 guides <A> as shown in the illustration.


2. Disengage the 3 guides <B> and remove the rear No. 2 floor board.


1. Remove the rear deck floor box.


1. Disengage the 2 guides and remove the rear No. 3 floor board.

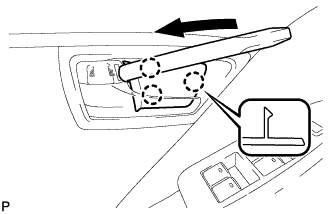

1. Using a moulding remover, disengage the 3 claws and remove the front door inside handle bezel plug.


1. Using a moulding remover, disengage the 6 claws, 2 clips and 3 guides, and remove the assist grip cover.

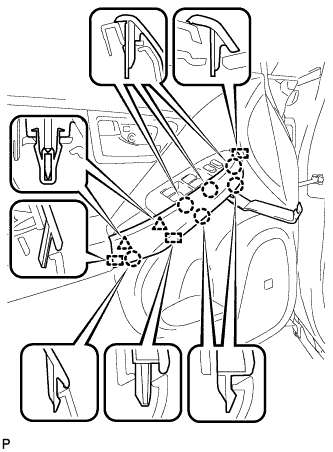

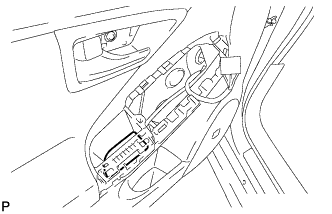

1. Disengage the 7 claws and 3 guides.


2. Disconnect the connector and remove the power window regulator master switch assembly with front door armrest base panel.


1. Disengage the 7 claws and 3 guides.


2. Disconnect the connector and remove the power window regulator switch assembly with front door armrest base panel.


1. Remove the door armrest cover.


1. Using a moulding remover, disengage the claw.


2. Disconnect the connector and remove the courtesy light assembly.

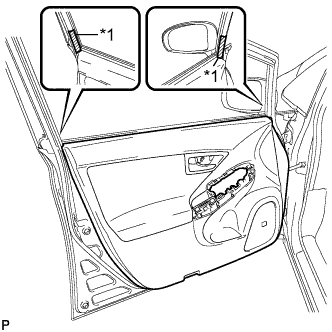

1. Put protective tape around the front door panel.


   Text in Illustration

   *1	Protective Tape

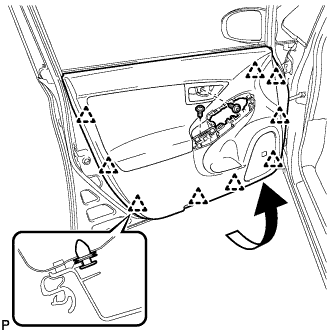

2. Remove the 2 screws.


3. Using a clip remover, disengage the 9 clips.


4. Pull out the front door trim board sub-assembly in the direction indicated by the arrow in the illustration.


5. Raise the front door trim board sub-assembly and remove the front door trim board sub-assembly together with the front door inner glass weatherstrip.


6. Disengage the 2 claws and disconnect the front door inside handle sub-assembly.

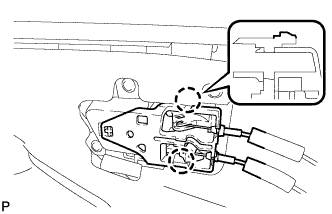

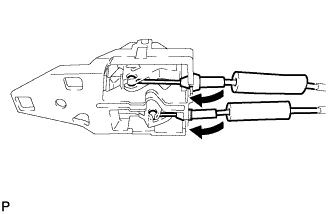

1. Disconnect the front door lock remote control cable and front door inside locking cable, and remove the front door inside handle sub-assembly.

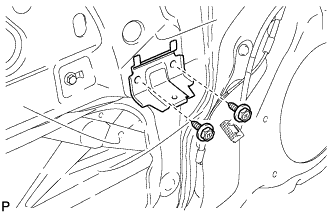

1. Remove the 2 screws and front door trim bracket.

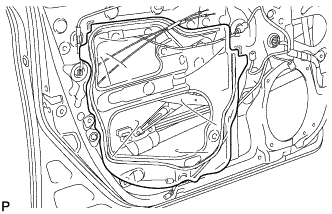

1. Remove the front door service hole cover.


   HINT:

   Remove any remaining butyl tape from the door.

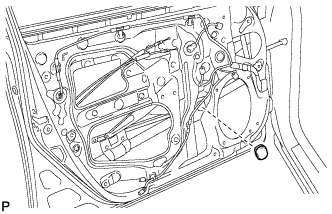

1. Remove the grommet.


2. Connect the power window regulator master switch assembly and move the front door glass sub-assembly so that the door glass bolts can be seen.



   1. w/ Navigation System for HDD:


      NOTICE:

      After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.

3. Disconnect the cable from the negative (-) battery terminal and power window regulator master switch assembly.


   NOTICE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

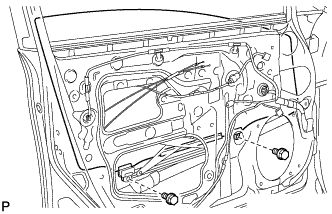

4. Remove the 2 bolts.


   NOTICE:

   After the bolts are removed, do not allow the door glass to fall.

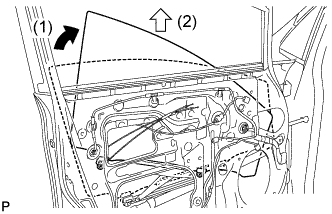

5. Remove the front door glass sub-assembly as indicated by the arrows, in the order shown in the illustration.


   NOTICE:

   Do not damage the door glass.

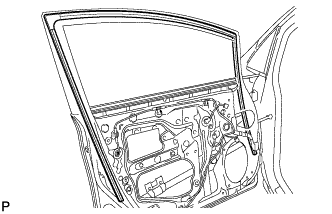

1. Remove the front door glass run.

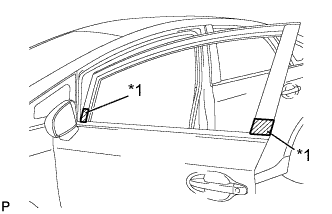

1. Put protective tape around the front door belt moulding assembly.


   Text in Illustration

   *1	Protective Tape

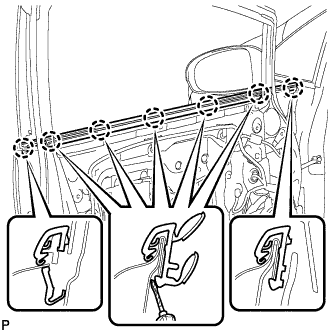

2. Using a screwdriver, disengage the 7 claws and remove the front door belt moulding assembly.


HINT:

When removing the front door rear window frame moulding, heat the vehicle body and front door rear window frame moulding using a heat light.

NOTICE:

Do not heat the vehicle body or front door rear window frame moulding moulding excessively.

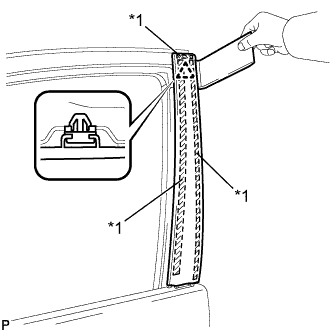

1. Using a heat light, heat the front door rear window frame moulding.


2. Using a moulding remover, remove the clip and front door rear window frame moulding.


   Text in Illustration

   *1	Double-sided Tape
